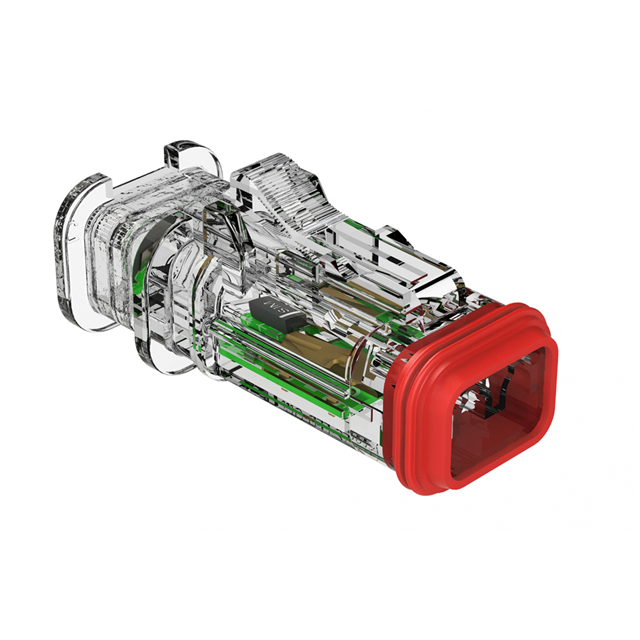

AT06-2S-LED24VR1-OM

Obsolete

Amphenol Sine Systems Corp

CONN PLUG HSG 2POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AT06-2S-LED24VR1-OM

Obsolete

Amphenol Sine Systems Corp

CONN PLUG HSG 2POS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AT06-2S-LED24VR1-OM

Color	Natural
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	IP67/IP69K, Sealed, LED
Insulation Material	Polycarbonate (PC)
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C

AT06-2S Series

Part	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Number of Positions	Note	Fastening Type	Mounting Type	Color	Contact Type	Number of Rows	Features	Contact Termination	Wire Gauge [Min]	Wire Gauge [Max]	Wire Type	Cable Termination
Amphenol Sine Systems Corp AT06-2S-BLU	Thermoplastic	-55 °C	125 °C	Plug	2	Contacts Not Included	Latch Lock	Free Hanging (In-Line)	Blue	Female Socket	1	Sealed	Crimp
Amphenol Sine Systems Corp AT06-2S-KIT01				Plug	2		Latch Lock	Free Hanging (In-Line)	Gray	Female Socket	1	Wedge Lock		16 AWG	18 AWG	Discrete	Crimp
Amphenol Sine Systems Corp AT06-2S-LED24K1	Thermoplastic	-55 °C	125 °C	Plug	2	Contacts Not Included	Latch Lock	Free Hanging (In-Line)	Black	Female Socket	1	LED	Crimp
Amphenol Sine Systems Corp AT06-2S-LED12V01-OMC	Polycarbonate (PC)	-40 °C	85 °C	Plug	2		Latch Lock	Free Hanging (In-Line)	Natural	Female Socket	1	IP68 IP69K LED Sealed	Crimp
Amphenol Sine Systems Corp AT06-2S-OMRDGRN	Polyamide (PA66) Nylon 6/6 Glass Filled	-55 °C	125 °C	Plug	2		Latch Lock	Free Hanging (In-Line)	Green	Female Socket	1	Sealed	Crimp
Amphenol Sine Systems Corp AT06-2S-OMRDBLU	Polyamide (PA66) Nylon 6/6 Glass Filled	-55 °C	125 °C	Plug	2		Latch Lock	Free Hanging (In-Line)	Blue	Female Socket	1	Sealed	Crimp
Amphenol Sine Systems Corp AT06-2S-MM03	Thermoplastic	-55 °C	125 °C			Contacts Not Included
Amphenol Sine Systems Corp AT06-2S-LED24VR1-OM	Polycarbonate (PC)	-40 °C	85 °C	Plug	2		Latch Lock	Free Hanging (In-Line)	Natural	Female Socket	1	IP67/IP69K LED Sealed	Crimp
Amphenol Sine Systems Corp AT06-2S-LED24V01-OMC	Polycarbonate (PC)	-40 °C	85 °C	Plug	2		Latch Lock	Free Hanging (In-Line)	Natural	Female Socket	1	IP68 IP69K LED Sealed	Crimp
Amphenol Sine Systems Corp AT06-2S-LED1230	Thermoplastic	-55 °C	125 °C	Plug	2	Contacts Not Included	Latch Lock	Free Hanging (In-Line)	Gray	Female Socket	1	Cap (Cover) LED Sealed Strain Relief	Crimp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

AT06-2S Series

2 Rectangular Connectors - Housings Plug Natural
