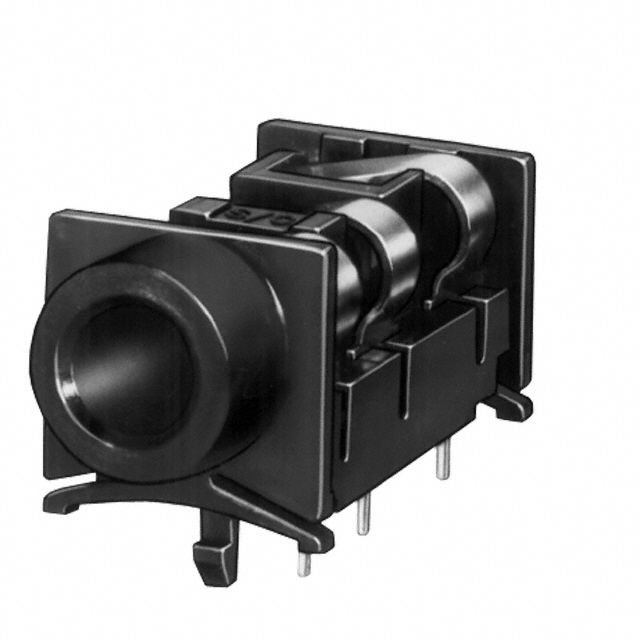

SN37A14B
ActiveSwitchcraft Inc.
CONN JACK STEREO 6.35MM R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SN37A14B
ActiveSwitchcraft Inc.
CONN JACK STEREO 6.35MM R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SN37A14B |
|---|---|
| Actual Diameter [diameter] | 0.25 in |
| Actual Diameter [diameter] | 6.35 mm |
| Body Color | Black |
| Connector Type | Phone Jack |
| Contact Material | Brass |
| Contact Material - Plating [custom] | Nickel |
| Features | Board Guide, Cover |
| Gender | Female |
| Housing Material | Thermoplastic |
| Includes | Connector, Washer, Nut |
| Internal Switch(s) | Two Switches |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions/Contacts [custom] | 3 |
| Number of Positions/Contacts [custom] | 5 |
| Shielding | Unshielded |
| Signal Lines | Stereo |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.96 | |
| 10 | $ 4.48 | |||
| 25 | $ 4.23 | |||
| 50 | $ 4.13 | |||
| 100 | $ 3.92 | |||
| 300 | $ 3.51 | |||
| 500 | $ 3.30 | |||
| 1000 | $ 3.19 | |||
Description
General part information
SN37A1 Series
6.35mm (0.250", 1/4") - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder
