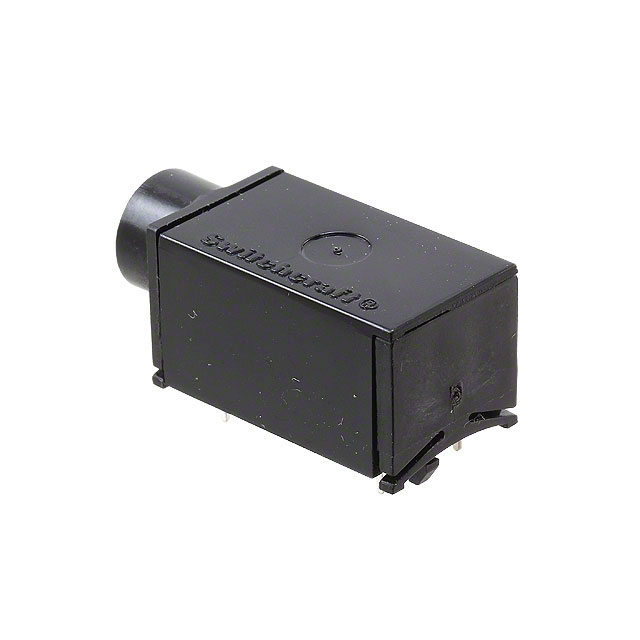

SN37A12A
ActiveSwitchcraft Inc.
CONN JACK MONO 6.35MM R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SN37A12A
ActiveSwitchcraft Inc.
CONN JACK MONO 6.35MM R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SN37A12A |
|---|---|
| Actual Diameter [diameter] | 0.25 in |
| Actual Diameter [diameter] | 6.35 mm |
| Body Color | Black |
| Connector Type | Phone Jack |
| Contact Material | Brass |
| Contact Material - Plating [custom] | Nickel |
| Features | Board Guide, Cover |
| Gender | Female |
| Housing Material | Thermoplastic |
| Includes | Connector, Washer, Nut |
| Internal Switch(s) | Single Switch |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions/Contacts | 3 Conductors, 2 Conductors |
| Shielding | Unshielded |
| Signal Lines | Mono |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.76 | |
| 10 | $ 4.41 | |||
| 25 | $ 3.97 | |||
| 50 | $ 3.68 | |||
| 100 | $ 3.42 | |||
| 300 | $ 3.04 | |||
| 500 | $ 2.89 | |||
| 1000 | $ 2.70 | |||
| 2500 | $ 2.47 | |||
Description
General part information
SN37A1 Series
6.35mm (0.250", 1/4") - Headphone Phone Jack Mono Connector Solder
