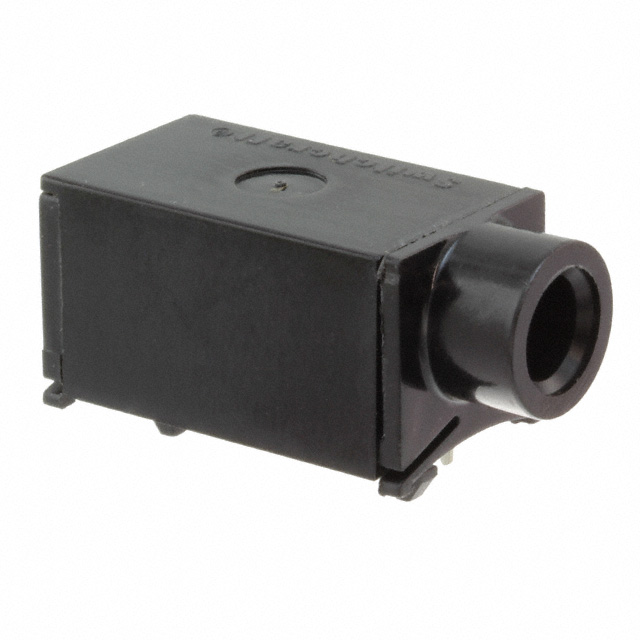

SN37A11

Active

Switchcraft Inc.

CONN JACK MONO 6.35MM R/A

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN JACK MONO 6.35MM R/A

Technical Specifications

Parameters and characteristics for this part

Specification	SN37A11

Actual Diameter [diameter]	0.25 in
Actual Diameter [diameter]	6.35 mm
Body Color	Black
Connector Type	Phone Jack
Contact Material	Brass
Contact Material - Plating [custom]	Nickel
Features	Board Guide, Cover
Gender	Female
Housing Material	Thermoplastic
Includes	Connector, Washer, Nut
Internal Switch(s)	False
Mounting Type	Through Hole, Right Angle
Number of Positions/Contacts [custom]	2
Number of Positions/Contacts [custom]	2
Shielding	Unshielded
Signal Lines	Mono
Termination	Solder

Part	Signal Lines	Shielding	Features	Body Color	Mounting Type	Connector Type	Number of Positions/Contacts	Includes	Contact Material	Actual Diameter [diameter]	Actual Diameter [diameter]	Termination	Housing Material	Internal Switch(s)	Gender	Contact Material - Plating [custom]	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]
Switchcraft Inc. SN37A12A	Mono	Unshielded	Board Guide Cover	Black	Through Hole Right Angle	Phone Jack	2 Conductors 3 Conductors	Connector Nut Washer	Brass	0.25 in	6.35 mm	Solder	Thermoplastic	Single Switch	Female	Nickel
Switchcraft Inc. SN37A12B	Stereo	Unshielded	Board Guide Cover	Black	Through Hole Right Angle	Phone Jack		Connector Nut Washer	Brass	0.25 in	6.35 mm	Solder	Thermoplastic		Female	Nickel	3	3
Switchcraft Inc. SN37A11	Mono	Unshielded	Board Guide Cover	Black	Through Hole Right Angle	Phone Jack		Connector Nut Washer	Brass	0.25 in	6.35 mm	Solder	Thermoplastic		Female	Nickel	2	2
Switchcraft Inc. SN37A14B	Stereo	Unshielded	Board Guide Cover	Black	Through Hole Right Angle	Phone Jack		Connector Nut Washer	Brass	0.25 in	6.35 mm	Solder	Thermoplastic	Two Switches	Female	Nickel	3	5

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6.35mm (0.250", 1/4") - Headphone Phone Jack Mono Connector Solder
