82-63

Active

Amphenol RF

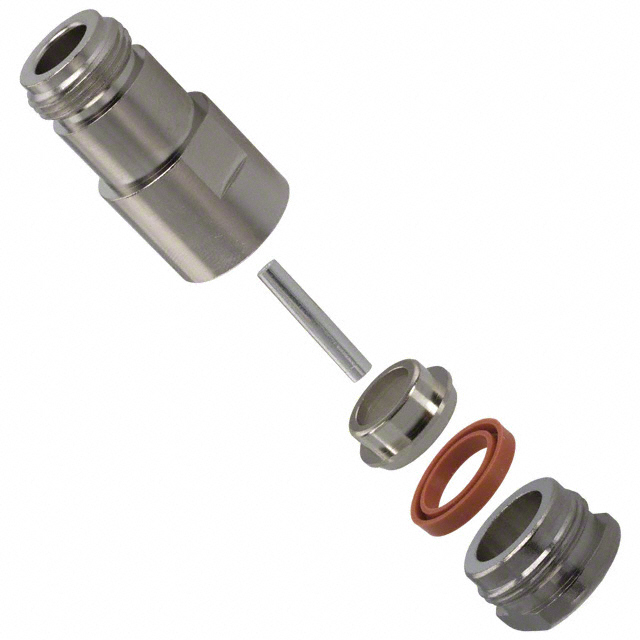

CONN N JACK STR 50 OHM SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

82-63

Active

Amphenol RF

CONN N JACK STR 50 OHM SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	82-63

Body Finish	Nickel
Body Material	Brass
Cable Group	302, 9A, RG-8, 213, 9B, 225, 8A, 87, 214, 9, 393
Center Contact Material	Beryllium Copper
Center Contact Plating	Silver
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Clamp, 1 Gasket, 1 Connector, 1 Contact, 1 Braid Clamp
Ingress Protection	Weatherproof
Insertion Loss	0.15 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	1500 V

- Series

Part	Center Contact Plating	Connector Type	Fastening Type	Body Finish	Frequency - Max [Max]	Number of Ports	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Mating Cycles	Includes	Dielectric Material	Impedance	Center Contact Material	Connector Style	Contact Termination	Shield Termination	Housing Color	Mounting Feature	Voltage Rating	Insertion Loss	Cable Group	Mounting Type	Ingress Protection	Impedance	Adapter Type	Convert To (Adapter End)	Convert From (Adapter End)	Adapter Series	Conversion Type	Style	Center Gender
Amphenol RF 027-3	Gold	Male Pin Receptacle	Snap-On	Gold	6000 MHz	1	-65 ░C	165 °C	Brass	500	1 Connector 1 Lockwasher 1 Nut	Polytetrafluoroethylene (PTFE)	50 Ohms	Brass	SMB	Solder Cup	Solder	Gold	Bulkhead - Front Side Nut
Amphenol RF 82-312	Silver	Male Pin Plug		Nickel	11 GHz	1	-55 °C	85 °C	Brass	500	1 Braid Clamp 1 Clamp 1 Connector 1 Contact 1 Gasket 1 Washer 2 Insulators	Polytetrafluoroethylene (PTFE)	50 Ohms	Brass	N Type	Solder	Clamp	Silver		1500 V	0.15 dB	213 214 225 302 393 87 8A 9 9A 9B RG-8	Free Hanging (In-Line)	Weatherproof
Amphenol RF 83-1R	Silver	Female Socket Receptacle		Nickel	300 MHz	1			Zinc Die Cast			Polybutylene Terephthalate (PBT) Polyester		Brass	UHF	Solder Cup	Solder	Silver	Flange	500 V					Non-Constant
Amphenol RF 82-64	Silver			Nickel	11 GHz		-65 ░C	165 °C	Brass	500		Polytetrafluoroethylene (PTFE)	50 Ohms	Beryllium Copper									Free Hanging (In-Line) Right Angle	IP67 - Dust Tight Waterproof		Plug to Jack	Female Socket N Jack	N Plug Male Pin	N to N	Same Series	Right Angle
Amphenol RF 83-1F	Silver			Nickel	300 MHz		-65 ░C	165 °C	Brass			Polystyrene (PS)		Brass					Bulkhead						Non-Constant	Jack to Jack	Female Socket UHF Jack		UHF to UHF	Same Series	Straight	Female to Female
Amphenol RF 82-101	Silver			Nickel	11 GHz		-65 ░C	165 °C	Brass			Polytetrafluoroethylene (PTFE)	50 Ohms	Beryllium Copper									Free Hanging (In-Line)			Jack to Jack	Female Socket N Jack	Female Socket N Jack	N to N	Same Series	Straight	Female to Female
Amphenol RF 83-878	Silver	Female Socket Jack		Nickel	300 MHz	1			Zinc Die Cast		1 Connector 1 Lockwasher 1 Nut	Polybutylene Terephthalate (PBT)		Brass	UHF	Solder Cup	Solder	Silver	Bulkhead - Front Side Nut	500 V					Non-Constant
Amphenol RF 82-63	Silver	Female Socket Jack		Nickel	11 GHz	1	-65 ░C	165 °C	Brass	500	1 Braid Clamp 1 Clamp 1 Connector 1 Contact 1 Gasket	Polytetrafluoroethylene (PTFE)	50 Ohms	Beryllium Copper	N Type	Solder	Clamp	Silver		1500 V	0.15 dB	213 214 225 302 393 87 8A 9 9A 9B RG-8	Free Hanging (In-Line)	Weatherproof
Amphenol RF 82-202-RFX	Gold	Male Pin Plug		Nickel	11 GHz	1	-65 ░C	165 °C	Brass	500	1 Braid 1 Clamp 1 Connector 1 Contact 1 Gasket 1 Washer Clamp	Polytetrafluoroethylene (PTFE)	50 Ohms	Brass	N Type	Solder	Clamp	Silver		1500 V	0.15 dB	213 214 225 302 393 87 8A 9 9A 9B RG-8	Free Hanging (In-Line)	Weatherproof
Amphenol RF 225-101P-52S	Silver	Male Pin Plug		White Bronze	6000 MHz	1	-65 ░C	165 °C	Brass			Polytetrafluoroethylene (PTFE)	50 Ohms	Brass	2.2/5	Solder	Solder	Silver					Free Hanging (In-Line)
