82-101
ActiveAmphenol RF

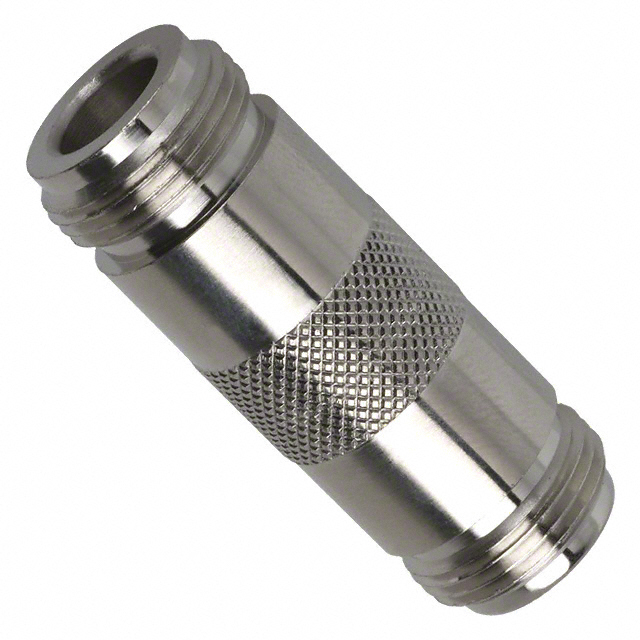

CONN ADAPT JACK-JACK N 50 OHM
Deep-Dive with AI
Search across all available documentation for this part.
82-101
ActiveAmphenol RF
CONN ADAPT JACK-JACK N 50 OHM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 82-101 |
|---|---|
| Adapter Series | N to N |
| Adapter Type | Jack to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Silver |
| Center Gender | Female to Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | N Jack, Female Socket |
| Convert To (Adapter End) | Female Socket, N Jack |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 11 GHz |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Style | Straight |
- Series
| Part | Center Contact Plating | Connector Type | Fastening Type | Body Finish | Frequency - Max [Max] | Number of Ports | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Mating Cycles | Includes | Dielectric Material | Impedance | Center Contact Material | Connector Style | Contact Termination | Shield Termination | Housing Color | Mounting Feature | Voltage Rating | Insertion Loss | Cable Group | Mounting Type | Ingress Protection | Impedance | Adapter Type | Convert To (Adapter End) | Convert From (Adapter End) | Adapter Series | Conversion Type | Style | Center Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol RF | Gold | Male Pin Receptacle | Snap-On | Gold | 6000 MHz | 1 | -65 ░C | 165 °C | Brass | 500 | 1 Connector 1 Lockwasher 1 Nut | Polytetrafluoroethylene (PTFE) | 50 Ohms | Brass | SMB | Solder Cup | Solder | Gold | Bulkhead - Front Side Nut | |||||||||||||
Amphenol RF | Silver | Male Pin Plug | Nickel | 11 GHz | 1 | -55 °C | 85 °C | Brass | 500 | 1 Braid Clamp 1 Clamp 1 Connector 1 Contact 1 Gasket 1 Washer 2 Insulators | Polytetrafluoroethylene (PTFE) | 50 Ohms | Brass | N Type | Solder | Clamp | Silver | 1500 V | 0.15 dB | 213 214 225 302 393 87 8A 9 9A 9B RG-8 | Free Hanging (In-Line) | Weatherproof | ||||||||||
Amphenol RF | Silver | Female Socket Receptacle | Nickel | 300 MHz | 1 | Zinc Die Cast | Polybutylene Terephthalate (PBT) Polyester | Brass | UHF | Solder Cup | Solder | Silver | Flange | 500 V | Non-Constant | |||||||||||||||||
Amphenol RF | Silver | Nickel | 11 GHz | -65 ░C | 165 °C | Brass | 500 | Polytetrafluoroethylene (PTFE) | 50 Ohms | Beryllium Copper | Free Hanging (In-Line) Right Angle | IP67 - Dust Tight Waterproof | Plug to Jack | Female Socket N Jack | N Plug Male Pin | N to N | Same Series | Right Angle | ||||||||||||||
Amphenol RF | Silver | Nickel | 300 MHz | -65 ░C | 165 °C | Brass | Polystyrene (PS) | Brass | Bulkhead | Non-Constant | Jack to Jack | Female Socket UHF Jack | UHF to UHF | Same Series | Straight | Female to Female | ||||||||||||||||
Amphenol RF | Silver | Nickel | 11 GHz | -65 ░C | 165 °C | Brass | Polytetrafluoroethylene (PTFE) | 50 Ohms | Beryllium Copper | Free Hanging (In-Line) | Jack to Jack | Female Socket N Jack | Female Socket N Jack | N to N | Same Series | Straight | Female to Female | |||||||||||||||
Amphenol RF | Silver | Female Socket Jack | Nickel | 300 MHz | 1 | Zinc Die Cast | 1 Connector 1 Lockwasher 1 Nut | Polybutylene Terephthalate (PBT) | Brass | UHF | Solder Cup | Solder | Silver | Bulkhead - Front Side Nut | 500 V | Non-Constant | ||||||||||||||||
Amphenol RF | Silver | Female Socket Jack | Nickel | 11 GHz | 1 | -65 ░C | 165 °C | Brass | 500 | 1 Braid Clamp 1 Clamp 1 Connector 1 Contact 1 Gasket | Polytetrafluoroethylene (PTFE) | 50 Ohms | Beryllium Copper | N Type | Solder | Clamp | Silver | 1500 V | 0.15 dB | 213 214 225 302 393 87 8A 9 9A 9B RG-8 | Free Hanging (In-Line) | Weatherproof | ||||||||||
Amphenol RF | Gold | Male Pin Plug | Nickel | 11 GHz | 1 | -65 ░C | 165 °C | Brass | 500 | 1 Braid 1 Clamp 1 Connector 1 Contact 1 Gasket 1 Washer Clamp | Polytetrafluoroethylene (PTFE) | 50 Ohms | Brass | N Type | Solder | Clamp | Silver | 1500 V | 0.15 dB | 213 214 225 302 393 87 8A 9 9A 9B RG-8 | Free Hanging (In-Line) | Weatherproof | ||||||||||
Amphenol RF | Silver | Male Pin Plug | White Bronze | 6000 MHz | 1 | -65 ░C | 165 °C | Brass | Polytetrafluoroethylene (PTFE) | 50 Ohms | Brass | 2.2/5 | Solder | Solder | Silver | Free Hanging (In-Line) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 32.43 | |
| 10 | $ 25.04 | |||
| 25 | $ 22.69 | |||
| 50 | $ 21.10 | |||
| 100 | $ 19.66 | |||
| 250 | $ 17.97 | |||
| 500 | $ 16.83 | |||
Description
General part information
- Series
Adapter Coaxial Connector N Jack, Female Socket To N Jack, Female Socket 50 Ohms
