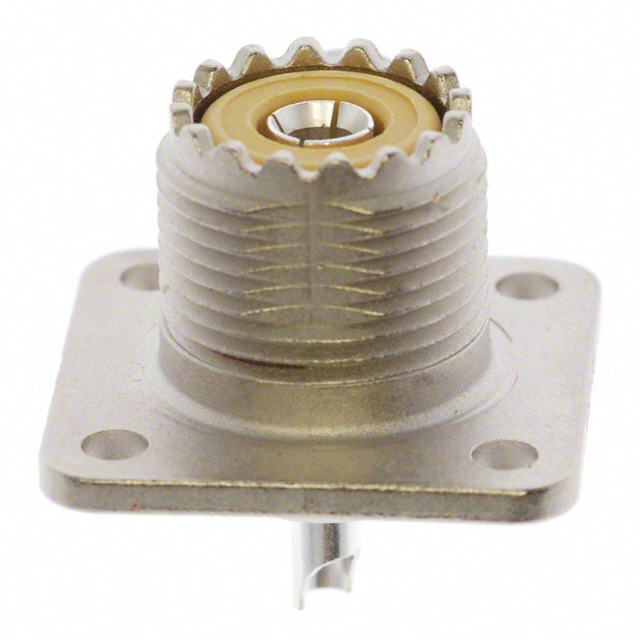

83-1R

Active

Amphenol RF

CONN UHF RCPT STR SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

83-1R

Active

Amphenol RF

CONN UHF RCPT STR SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	83-1R

Body Finish	Nickel
Body Material	Zinc Die Cast
Center Contact Material	Brass
Center Contact Plating	Silver
Connector Style	UHF
Connector Type	Receptacle, Female Socket
Contact Termination	Solder Cup
Dielectric Material	Polybutylene Terephthalate (PBT), Polyester
Frequency - Max [Max]	300 MHz
Housing Color	Silver
Impedance	Non-Constant
Mounting Feature	Flange
Number of Ports	1
Shield Termination	Solder
Voltage Rating	500 V

- Series

Part	Center Contact Plating	Connector Type	Fastening Type	Body Finish	Frequency - Max [Max]	Number of Ports	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Mating Cycles	Includes	Dielectric Material	Impedance	Center Contact Material	Connector Style	Contact Termination	Shield Termination	Housing Color	Mounting Feature	Voltage Rating	Insertion Loss	Cable Group	Mounting Type	Ingress Protection	Impedance	Adapter Type	Convert To (Adapter End)	Convert From (Adapter End)	Adapter Series	Conversion Type	Style	Center Gender
Amphenol RF 027-3	Gold	Male Pin Receptacle	Snap-On	Gold	6000 MHz	1	-65 ░C	165 °C	Brass	500	1 Connector 1 Lockwasher 1 Nut	Polytetrafluoroethylene (PTFE)	50 Ohms	Brass	SMB	Solder Cup	Solder	Gold	Bulkhead - Front Side Nut
Amphenol RF 82-312	Silver	Male Pin Plug		Nickel	11 GHz	1	-55 °C	85 °C	Brass	500	1 Braid Clamp 1 Clamp 1 Connector 1 Contact 1 Gasket 1 Washer 2 Insulators	Polytetrafluoroethylene (PTFE)	50 Ohms	Brass	N Type	Solder	Clamp	Silver		1500 V	0.15 dB	213 214 225 302 393 87 8A 9 9A 9B RG-8	Free Hanging (In-Line)	Weatherproof
Amphenol RF 83-1R	Silver	Female Socket Receptacle		Nickel	300 MHz	1			Zinc Die Cast			Polybutylene Terephthalate (PBT) Polyester		Brass	UHF	Solder Cup	Solder	Silver	Flange	500 V					Non-Constant
Amphenol RF 82-64	Silver			Nickel	11 GHz		-65 ░C	165 °C	Brass	500		Polytetrafluoroethylene (PTFE)	50 Ohms	Beryllium Copper									Free Hanging (In-Line) Right Angle	IP67 - Dust Tight Waterproof		Plug to Jack	Female Socket N Jack	N Plug Male Pin	N to N	Same Series	Right Angle
Amphenol RF 83-1F	Silver			Nickel	300 MHz		-65 ░C	165 °C	Brass			Polystyrene (PS)		Brass					Bulkhead						Non-Constant	Jack to Jack	Female Socket UHF Jack		UHF to UHF	Same Series	Straight	Female to Female
Amphenol RF 82-101	Silver			Nickel	11 GHz		-65 ░C	165 °C	Brass			Polytetrafluoroethylene (PTFE)	50 Ohms	Beryllium Copper									Free Hanging (In-Line)			Jack to Jack	Female Socket N Jack	Female Socket N Jack	N to N	Same Series	Straight	Female to Female
Amphenol RF 83-878	Silver	Female Socket Jack		Nickel	300 MHz	1			Zinc Die Cast		1 Connector 1 Lockwasher 1 Nut	Polybutylene Terephthalate (PBT)		Brass	UHF	Solder Cup	Solder	Silver	Bulkhead - Front Side Nut	500 V					Non-Constant
Amphenol RF 82-63	Silver	Female Socket Jack		Nickel	11 GHz	1	-65 ░C	165 °C	Brass	500	1 Braid Clamp 1 Clamp 1 Connector 1 Contact 1 Gasket	Polytetrafluoroethylene (PTFE)	50 Ohms	Beryllium Copper	N Type	Solder	Clamp	Silver		1500 V	0.15 dB	213 214 225 302 393 87 8A 9 9A 9B RG-8	Free Hanging (In-Line)	Weatherproof
Amphenol RF 82-202-RFX	Gold	Male Pin Plug		Nickel	11 GHz	1	-65 ░C	165 °C	Brass	500	1 Braid 1 Clamp 1 Connector 1 Contact 1 Gasket 1 Washer Clamp	Polytetrafluoroethylene (PTFE)	50 Ohms	Brass	N Type	Solder	Clamp	Silver		1500 V	0.15 dB	213 214 225 302 393 87 8A 9 9A 9B RG-8	Free Hanging (In-Line)	Weatherproof
Amphenol RF 225-101P-52S	Silver	Male Pin Plug		White Bronze	6000 MHz	1	-65 ░C	165 °C	Brass			Polytetrafluoroethylene (PTFE)	50 Ohms	Brass	2.2/5	Solder	Solder	Silver					Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.88
		10	$ 5.34
		25	$ 5.06
		50	$ 4.94
		100	$ 4.70
		250	$ 4.12
		500	$ 4.00
		1000	$ 3.41
		2500	$ 3.18

Description

General part information

- Series

UHF Connector Receptacle, Female Socket Non-Constant Panel Mount Solder Cup
