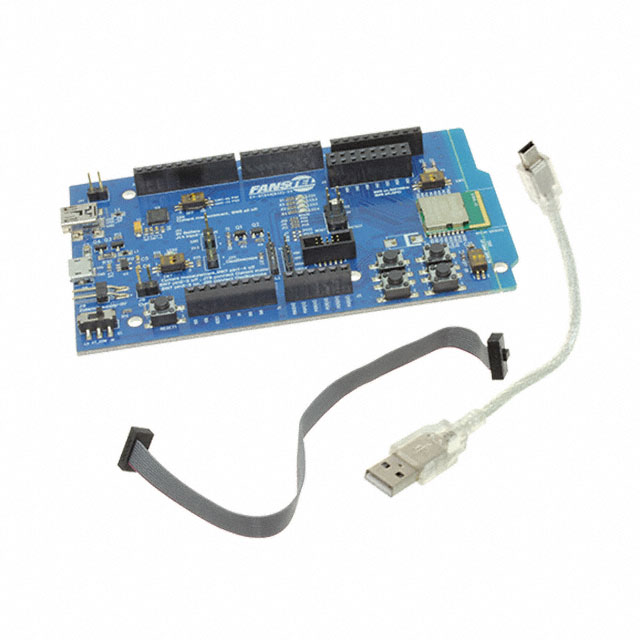

EV-BT840F

Active

Fanstel Corp.

EVALUATION BOARD FOR BT840F BLUE

Search across all available documentation for this part.

Active

Fanstel Corp.

EVALUATION BOARD FOR BT840F BLUE

Technical Specifications

Parameters and characteristics for this part

Specification	EV-BT840F

For Use With/Related Products	BT840F
Frequency	2.4 GHz
Supplied Contents	Board(s)
Type	Transceiver, Bluetooth® 5.x (BLE)

Part	Antenna Type	Protocol	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Power - Output	Utilized IC / Part	Memory Size	Data Rate	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	RF Family/Standard	Serial Interfaces	Frequency	Supplied Contents	For Use With/Related Products	Type
Fanstel Corp. BT840XE	Antenna Not Included U.FL	Bluetooth v5.0 Thread Zigbee®	5.5 V	1.7 V	Surface Mount	21 dBm	nRF52840-QIAA	1 MB 256 kB	2 Mbps	85 °C	-40 °C	16-SMD Module	802.15.4 Bluetooth	ADC GPIO I2C I2S PWM SPI UART USB	2.4 GHz
Fanstel Corp. BT840E	Antenna Not Included U.FL	Bluetooth v5.0 Thread Zigbee®	5.5 V	1.7 V	Surface Mount	8 dBm	nRF52840	1 MB 256 kB	12 Mbps	85 °C	-40 °C	16-SMD Module	802.15.4 Bluetooth	SPI USB	2.4 GHz
Fanstel Corp. EV-BT840F															2.4 GHz	Board(s)	BT840F	Bluetooth® 5.x (BLE) Transceiver
Fanstel Corp. BT840X	PCB Trace	Bluetooth v5.0 Thread Zigbee	5.5 V	1.7 V	Surface Mount	21 dBm	nRF52840-QIAA	1 MB 256 kB	2 Mbps	85 °C	-40 °C	16-SMD Module	802.15.4 Bluetooth	ADC GPIO I2C I2S PWM SPI UART USB	2.4 GHz
Fanstel Corp. EV-BT840															2.4 GHz	Board(s)		Bluetooth® 5.x (BLE) Transceiver
Fanstel Corp. EV-BT840E															2.4 GHz	Board(s)	BT840E	Bluetooth® 5.x (BLE) Transceiver
Fanstel Corp. BT840F	Integrated Trace	Bluetooth v5.0 Thread Zigbee®	5.5 V	1.7 V	Surface Mount	8 dBm	nRF52840	1 MB 256 kB	12 Mbps	85 °C	-40 °C	16-SMD Module	802.15.4 Bluetooth	SPI USB	2.4 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 50.00

General part information

BT840F - Transceiver; Bluetooth® 5.x (BLE) 2.4GHz Evaluation Board
