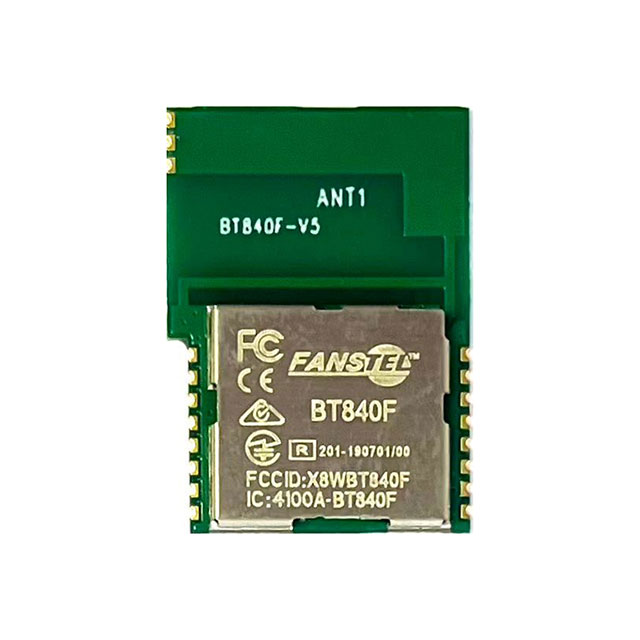

BT840F
ActiveFanstel Corp.
RF TXRX MOD BT TRACE SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BT840F
ActiveFanstel Corp.
RF TXRX MOD BT TRACE SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BT840F |
|---|---|
| Antenna Type | Integrated, Trace |
| Data Rate | 12 Mbps |
| Frequency | 2.4 GHz |
| Memory Size | 1 MB, 256 kB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 16-SMD Module |
| Power - Output | 8 dBm |
| Protocol | Zigbee®, Thread, Bluetooth v5.0 |
| RF Family/Standard | Bluetooth, 802.15.4 |
| Serial Interfaces | USB, SPI |
| Utilized IC / Part | nRF52840 |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 1.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 12.90 | |
| 10 | $ 11.67 | |||
| 25 | $ 10.75 | |||
| 100 | $ 9.83 | |||
| 250 | $ 9.21 | |||
| 500 | $ 8.60 | |||
| Digi-Reel® | 1 | $ 12.90 | ||
| 10 | $ 11.67 | |||
| 25 | $ 10.75 | |||
| 100 | $ 9.83 | |||
| 250 | $ 9.21 | |||
| 500 | $ 8.60 | |||
| Tape & Reel (TR) | 1000 | $ 8.17 | ||
Description
General part information
BT840 Series
802.15.4, Bluetooth Bluetooth v5.0, Thread, Zigbee® Transceiver Module 2.4GHz Integrated, Trace Surface Mount
