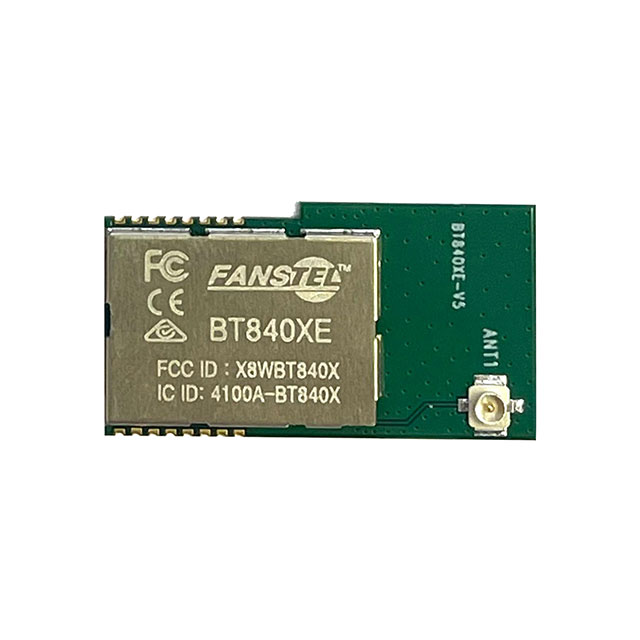

BT840XE
ActiveFanstel Corp.
RF TXRX MOD 802.15.4 BTU.FL SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BT840XE
ActiveFanstel Corp.
RF TXRX MOD 802.15.4 BTU.FL SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BT840XE |
|---|---|
| Antenna Type | Antenna Not Included, U.FL |
| Data Rate | 2 Mbps |
| Frequency | 2.4 GHz |
| Memory Size | 1 MB, 256 kB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 16-SMD Module |
| Power - Output | 21 dBm |
| Protocol | Zigbee®, Thread, Bluetooth v5.0 |
| RF Family/Standard | Bluetooth, 802.15.4 |
| Serial Interfaces | UART, ADC, GPIO, USB, PWM, I2C, SPI, I2S |
| Utilized IC / Part | nRF52840-QIAA |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 1.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 21.29 | |
| 10 | $ 19.65 | |||
| 25 | $ 18.01 | |||
| 100 | $ 16.65 | |||
| 250 | $ 15.83 | |||
| 500 | $ 14.74 | |||
| Digi-Reel® | 1 | $ 21.29 | ||
| 10 | $ 19.65 | |||
| 25 | $ 18.01 | |||
| 100 | $ 16.65 | |||
| 250 | $ 15.83 | |||
| 500 | $ 14.74 | |||
| Tape & Reel (TR) | 1000 | $ 14.19 | ||
Description
General part information
BT840 Series
802.15.4, Bluetooth Bluetooth v5.0, Thread, Zigbee® Transceiver Module 2.4GHz Antenna Not Included, U.FL Surface Mount
