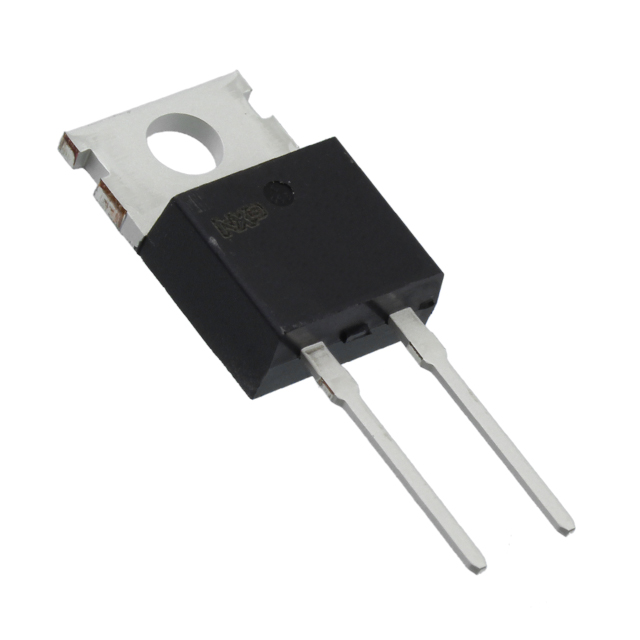

BYC30-1200PQ

Active

WeEn Semiconductors Co., Ltd

DIODE GEN PURP 1.2KV 30A TO220AC

Deep-Dive with AI

Search across all available documentation for this part.

BYC30-1200PQ

Active

WeEn Semiconductors Co., Ltd

DIODE GEN PURP 1.2KV 30A TO220AC

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BYC30-1200PQ

Current - Average Rectified (Io)	30 A
Current - Reverse Leakage @ Vr	250 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	175 °C
Package / Case	TO-220-2
Reverse Recovery Time (trr)	65 ns
Speed	200 mA, 500 ns
Supplier Device Package	TO-220AC
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	1.2 kV
Voltage - Forward (Vf) (Max) @ If	3.3 V

BYC30 Series

Part	Package / Case	Operating Temperature - Junction [Max]	Voltage - DC Reverse (Vr) (Max) [Max]	Reverse Recovery Time (trr)	Mounting Type	Technology	Speed	Current - Average Rectified (Io)	Current - Reverse Leakage @ Vr	Supplier Device Package	Voltage - Forward (Vf) (Max) @ If	Operating Temperature - Junction
WeEn Semiconductors Co., Ltd BYC30-600P,127	TO-220-2	175 °C	600 V	35 ns	Through Hole	Standard	200 mA 500 ns	30 A	10 µA	TO-220AC	1.8 V
WeEn Semiconductors Co., Ltd BYC30W-1200PQ	TO-247-2	175 °C	1.2 kV	65 ns	Through Hole	Standard	200 mA 500 ns	30 A	250 µA	TO-247-2	3.3 V
WeEn Semiconductors Co., Ltd BYC30X-600P,127	TO-220-2 Full Pack Isolated Tab	175 °C	600 V	35 ns	Through Hole	Standard	200 mA 500 ns	30 A	10 µA	TO-220FP	1.8 V
WeEn Semiconductors Co., Ltd BYC30-1200PQ	TO-220-2	175 °C	1.2 kV	65 ns	Through Hole	Standard	200 mA 500 ns	30 A	250 µA	TO-220AC	3.3 V
WeEn Semiconductors Co., Ltd BYC30W-600PQ	TO-247-2	175 °C	600 V	22 ns	Through Hole	Standard	200 mA 500 ns	30 A	10 µA	TO-247-2	2.75 V
WeEn Semiconductors Co., Ltd BYC30WT-600PSQ	TO-247-3		600 V	35 ns	Through Hole	Standard	200 mA 500 ns	30 A	10 µA	TO-247-3	2.75 V	175 °C
WeEn Semiconductors Co., Ltd BYC30B-600PJ	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	175 °C	600 V	35 ns	Surface Mount	Standard	200 mA 500 ns	30 A	10 µA	D2PAK	2.75 V
WeEn Semiconductors Co., Ltd BYC30W-600PT2Q	TO-247-2	175 °C	600 V	34 ns	Through Hole	Standard	200 mA 500 ns	30 A	10 µA	TO-247-2	2.75 V
WeEn Semiconductors Co., Ltd BYC30DW-600PQ	TO-247-2	175 °C	600 V	33 ns	Through Hole	Standard	200 mA 500 ns	30 A	10 µA	TO-247-2	3.3 V
WeEn Semiconductors Co., Ltd BYC30Y-600PQ	TO-220-2		600 V	35 ns	Through Hole	Standard	200 mA 500 ns	30 A	10 µA	IITO-220-2L	2.75 V	175 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	6000	$ 1.00

Description

General part information

BYC30 Series

Diode 1200 V 30A Through Hole TO-220AC
