09140123002

Active

HARTING Technology Group

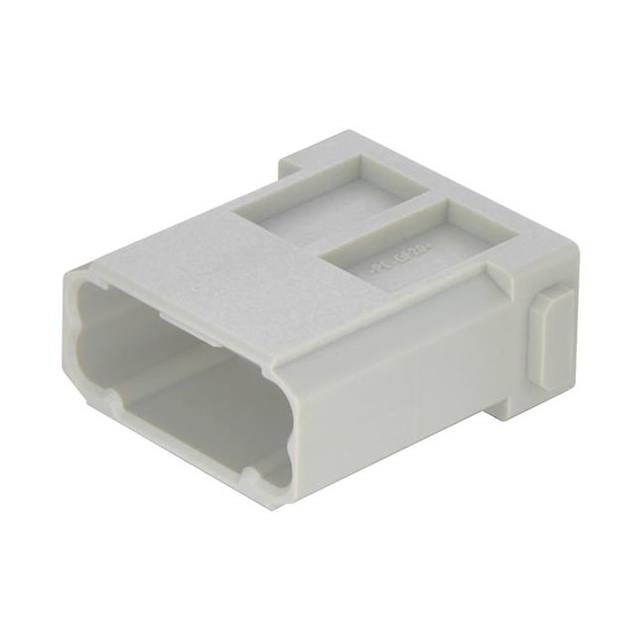

HEAVY DUTY CONNECTOR, HAN-MODULAR DD SERIES, MODULE, 12 CONTACTS, PLUG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

09140123002

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, HAN-MODULAR DD SERIES, MODULE, 12 CONTACTS, PLUG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09140123002

Color	Gray
Connector Type	Module without Contacts
Contact Type	Han® D
Current Rating (Amps)	10 A
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	12
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Termination Style	Crimp
Voltage Rating	250 VDC

09140123 Series

Part	Current Rating (Amps)	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Color	Contact Type	Number of Positions	Gender	Connector Type	Termination Style	Housing Material
HARTING Technology Group 09140123002	10 A	250 VDC	125 °C	-40 °C	UL94 V-0	Gray	Han® D	12	Male	Module without Contacts	Crimp	Polycarbonate (PC)
HARTING Technology Group 09140123101	10 A	250 VDC	125 °C	-40 °C	UL94 V-0	Gray	Han® D	12	Female	Module without Contacts	Crimp	Polycarbonate (PC)
HARTING Technology Group 09140123102	10 A	250 VDC	125 °C	-40 °C	UL94 V-0	Gray	Han® D	12	Female	Module without Contacts	Crimp	Polycarbonate (PC)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.85
		10	$ 6.31
		25	$ 5.59
		50	$ 5.13
		100	$ 4.72
		250	$ 4.26
		500	$ 3.96
		1000	$ 3.70
		2500	$ 3.40
Newark	Each	1	$ 6.49
		10	$ 5.62
		25	$ 5.50
		50	$ 5.38
		100	$ 5.26
		250	$ 4.98
		500	$ 4.61
		1000	$ 4.16

Description

General part information

09140123 Series

09140123002 is a Han-Modular® Han DD® single module. It is approved by IEC 60664-1, IEC 61984, UL 1977 ECBT2.E235076, CSA-C22.2 No. 182.3 and DNV GL standards.
