09140123102

Active

HARTING Technology Group

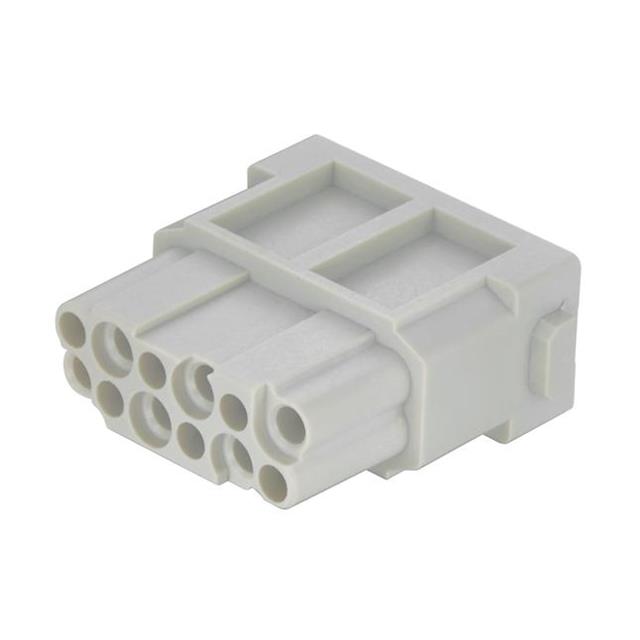

HEAVY DUTY CONNECTOR, HAN-MODULAR DD SERIES, MODULE, 12 CONTACTS, RECEPTACLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

09140123102

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, HAN-MODULAR DD SERIES, MODULE, 12 CONTACTS, RECEPTACLE

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09140123102

Color	Gray
Connector Type	Module without Contacts
Contact Type	Han® D
Current Rating (Amps)	10 A
Gender	Female
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	12
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Termination Style	Crimp
Voltage Rating	250 VDC

09140123 Series

Part	Current Rating (Amps)	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Color	Contact Type	Number of Positions	Gender	Connector Type	Termination Style	Housing Material
HARTING Technology Group 09140123002	10 A	250 VDC	125 °C	-40 °C	UL94 V-0	Gray	Han® D	12	Male	Module without Contacts	Crimp	Polycarbonate (PC)
HARTING Technology Group 09140123101	10 A	250 VDC	125 °C	-40 °C	UL94 V-0	Gray	Han® D	12	Female	Module without Contacts	Crimp	Polycarbonate (PC)
HARTING Technology Group 09140123102	10 A	250 VDC	125 °C	-40 °C	UL94 V-0	Gray	Han® D	12	Female	Module without Contacts	Crimp	Polycarbonate (PC)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.77
		10	$ 6.25
		25	$ 5.54
		50	$ 5.08
		100	$ 4.68
		250	$ 4.22
		500	$ 3.93
		1000	$ 3.67
		2500	$ 3.37
Newark	Each	1	$ 6.47
		10	$ 5.42
		25	$ 5.34
		50	$ 5.25
		100	$ 5.17
		250	$ 4.52
		500	$ 4.39
		1000	$ 3.74

Description

General part information

09140123 Series

09140123102 is a Han-Modular® Han DD® single module. It is approved by IEC 60664-1, IEC 61984, UL 1977 ECBT2.E235076, CSA-C22.2 No. 182.3 and DNV GL standards.
