9050JCK37V20

Obsolete

SQUARE D BY SCHNEIDER ELECTRIC

RELAY TIME DELAY 30MIN 10A 240V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRelays and Timers Electronic Timing Relays +1

9050JCK37V20

Obsolete

SQUARE D BY SCHNEIDER ELECTRIC

RELAY TIME DELAY 30MIN 10A 240V

Deep-Dive with AI

DocumentsRelays and Timers Electronic Timing Relays +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9050JCK37V20

Circuit	DPDT (2 Form C)
Contact Rating @ Voltage	10 A, 240 VAC
Delay Time [Max]	30 Min
Delay Time [Min]	0.3 Min
Function	Interval
Mounting Type	Socketable
Relay Type	Mechanical Relay
Termination Style	Plug In
Timing Adjustment Method	Hand Dial
Timing Initiate Method	Input Voltage
Voltage - Supply	120 VAC

9050J Series

Part	Termination Style	Function	Circuit	Voltage - Supply	Delay Time [Max]	Delay Time [Min]	Contact Rating @ Voltage	Timing Initiate Method	Relay Type	Mounting Type	Timing Adjustment Method	Delay Time
SQUARE D BY SCHNEIDER ELECTRIC 9050JCK26V14	Plug In	Off-Delay	DPDT (2 Form C)	24 VAC	10 Min	0.1 Min	10 A 240 VAC	Input Voltage	Mechanical Relay	Socketable	Hand Dial
SQUARE D BY SCHNEIDER ELECTRIC 9050JCK33V20	Plug In	Interval	DPDT (2 Form C)	120 VAC	60 Sec	0.6 Sec	10 A 240 VAC	Input Voltage	Mechanical Relay	Socketable	Hand Dial
SQUARE D BY SCHNEIDER ELECTRIC 9050JCK26PTV20	Plug In	Off-Delay	DPDT (2 Form C)	120 VAC	10 Min	0.1 Min	10 A 240 VAC	Input Voltage Trigger Signal	Mechanical Relay	Socketable	Hand Dial
SQUARE D BY SCHNEIDER ELECTRIC 9050JCK53V20	Plug In	Repeat Cycle	DPDT (2 Form C)	120 VAC	60 Sec	0.6 Sec	10 A 240 VAC	Input Voltage	Mechanical Relay	Socketable	Hand Dial
SQUARE D BY SCHNEIDER ELECTRIC 9050JCK23V20	Plug In	Off-Delay	DPDT (2 Form C)	120 VAC	60 Sec	0.6 Sec	10 A 240 VAC	Input Voltage	Mechanical Relay	Socketable	Hand Dial
SQUARE D BY SCHNEIDER ELECTRIC 9050JCK55V20	Plug In	Repeat Cycle	DPDT (2 Form C)	120 VAC	180 Sec	1.8 Sec	10 A 240 VAC	Input Voltage	Mechanical Relay	Socketable	Hand Dial
SQUARE D BY SCHNEIDER ELECTRIC 9050JCK11V14	Plug In	On-Delay	DPDT (2 Form C)	24 VAC	10 s	0.1 Sec	10 A 240 VAC	Input Voltage	Mechanical Relay	Socketable	Hand Dial
SQUARE D BY SCHNEIDER ELECTRIC 9050JCK29V20	Plug In	Off-Delay	DPDT (2 Form C)	120 VAC	120 Min	1.2 Min	10 A 240 VAC	Input Voltage	Mechanical Relay	Socketable	Hand Dial
SQUARE D BY SCHNEIDER ELECTRIC 9050JCK37V20	Plug In	Interval	DPDT (2 Form C)	120 VAC	30 Min	0.3 Min	10 A 240 VAC	Input Voltage	Mechanical Relay	Socketable	Hand Dial
SQUARE D BY SCHNEIDER ELECTRIC 9050JCK1F90V20	Plug In	On-Delay	DPDT (2 Form C)	120 VAC			10 A 240 VAC	Input Voltage	Mechanical Relay	Socketable	Fixed	90 Sec

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 116.41
		10	$ 109.94

Description

General part information

9050J Series

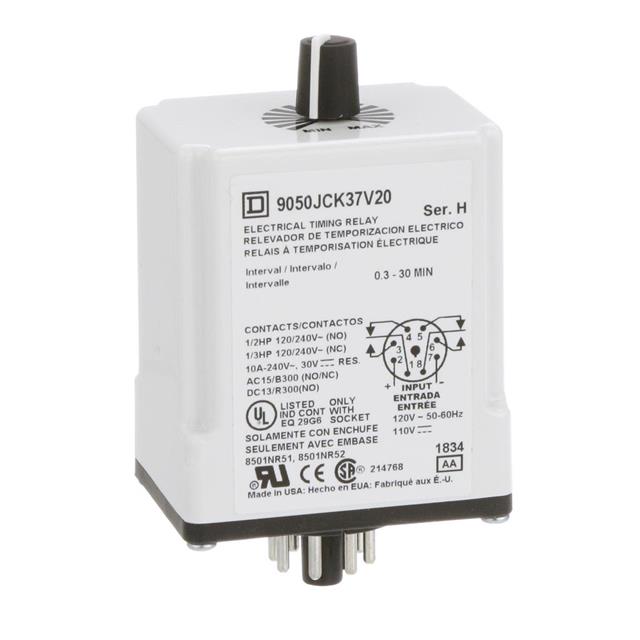

Interval Time Delay Relay DPDT (2 Form C) 0.3 Min ~ 30 Min Delay 10A @ 240VAC Socketable

9050JCK37V20

Deep-Dive with AI

9050JCK37V20

Deep-Dive with AI

Technical Specifications

9050J Series

Pricing

Description

9050J Series

Documents

Relays and Timers

Electronic Timing Relays

Datasheet

9050J Series
