9050JCK29V20

Obsolete

SQUARE D BY SCHNEIDER ELECTRIC

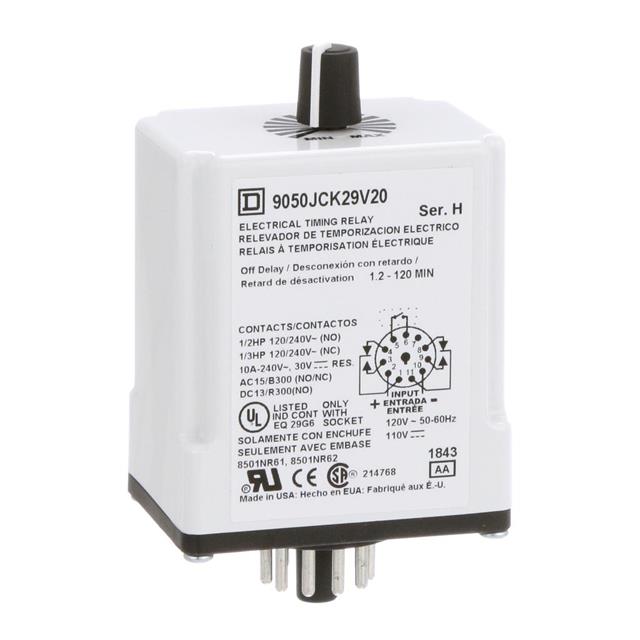

RELAY TIME DELAY 120MIN 10A 240V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsElectronic Timing Relays Datasheet

9050JCK29V20

Obsolete

SQUARE D BY SCHNEIDER ELECTRIC

RELAY TIME DELAY 120MIN 10A 240V

Deep-Dive with AI

DocumentsElectronic Timing Relays Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9050JCK29V20

Circuit	DPDT (2 Form C)
Contact Rating @ Voltage	10 A, 240 VAC
Delay Time [Max]	120 Min
Delay Time [Min]	1.2 Min
Function	Off-Delay
Mounting Type	Socketable
Relay Type	Mechanical Relay
Termination Style	Plug In
Timing Adjustment Method	Hand Dial
Timing Initiate Method	Input Voltage
Voltage - Supply	120 VAC

9050J Series

Part	Termination Style	Function	Circuit	Voltage - Supply	Delay Time [Max]	Delay Time [Min]	Contact Rating @ Voltage	Timing Initiate Method	Relay Type	Mounting Type	Timing Adjustment Method	Delay Time
SQUARE D BY SCHNEIDER ELECTRIC 9050JCK26V14	Plug In	Off-Delay	DPDT (2 Form C)	24 VAC	10 Min	0.1 Min	10 A 240 VAC	Input Voltage	Mechanical Relay	Socketable	Hand Dial
SQUARE D BY SCHNEIDER ELECTRIC 9050JCK33V20	Plug In	Interval	DPDT (2 Form C)	120 VAC	60 Sec	0.6 Sec	10 A 240 VAC	Input Voltage	Mechanical Relay	Socketable	Hand Dial
SQUARE D BY SCHNEIDER ELECTRIC 9050JCK26PTV20	Plug In	Off-Delay	DPDT (2 Form C)	120 VAC	10 Min	0.1 Min	10 A 240 VAC	Input Voltage Trigger Signal	Mechanical Relay	Socketable	Hand Dial
SQUARE D BY SCHNEIDER ELECTRIC 9050JCK53V20	Plug In	Repeat Cycle	DPDT (2 Form C)	120 VAC	60 Sec	0.6 Sec	10 A 240 VAC	Input Voltage	Mechanical Relay	Socketable	Hand Dial
SQUARE D BY SCHNEIDER ELECTRIC 9050JCK23V20	Plug In	Off-Delay	DPDT (2 Form C)	120 VAC	60 Sec	0.6 Sec	10 A 240 VAC	Input Voltage	Mechanical Relay	Socketable	Hand Dial
SQUARE D BY SCHNEIDER ELECTRIC 9050JCK55V20	Plug In	Repeat Cycle	DPDT (2 Form C)	120 VAC	180 Sec	1.8 Sec	10 A 240 VAC	Input Voltage	Mechanical Relay	Socketable	Hand Dial
SQUARE D BY SCHNEIDER ELECTRIC 9050JCK11V14	Plug In	On-Delay	DPDT (2 Form C)	24 VAC	10 s	0.1 Sec	10 A 240 VAC	Input Voltage	Mechanical Relay	Socketable	Hand Dial
SQUARE D BY SCHNEIDER ELECTRIC 9050JCK29V20	Plug In	Off-Delay	DPDT (2 Form C)	120 VAC	120 Min	1.2 Min	10 A 240 VAC	Input Voltage	Mechanical Relay	Socketable	Hand Dial
SQUARE D BY SCHNEIDER ELECTRIC 9050JCK37V20	Plug In	Interval	DPDT (2 Form C)	120 VAC	30 Min	0.3 Min	10 A 240 VAC	Input Voltage	Mechanical Relay	Socketable	Hand Dial
SQUARE D BY SCHNEIDER ELECTRIC 9050JCK1F90V20	Plug In	On-Delay	DPDT (2 Form C)	120 VAC			10 A 240 VAC	Input Voltage	Mechanical Relay	Socketable	Fixed	90 Sec
