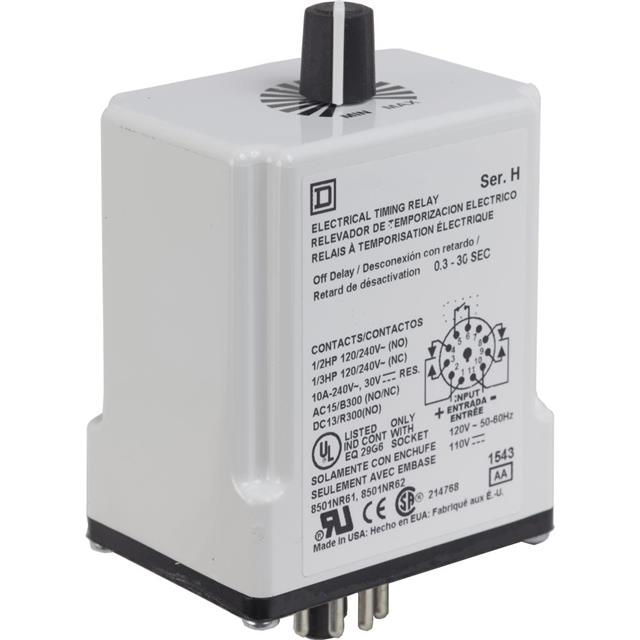

9050JCK26PTV20
ActiveSQUARE D BY SCHNEIDER ELECTRIC
RELAY TIME DELAY 10MIN
Deep-Dive with AI
Search across all available documentation for this part.
9050JCK26PTV20
ActiveSQUARE D BY SCHNEIDER ELECTRIC
RELAY TIME DELAY 10MIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9050JCK26PTV20 |
|---|---|
| Circuit | DPDT (2 Form C) |
| Contact Rating @ Voltage | 10 A, 240 VAC |
| Delay Time [Max] | 10 Min |
| Delay Time [Min] | 0.1 Min |
| Function | Off-Delay |
| Mounting Type | Socketable |
| Relay Type | Mechanical Relay |
| Termination Style | Plug In |
| Timing Adjustment Method | Hand Dial |
| Timing Initiate Method | Trigger Signal, Input Voltage |
| Voltage - Supply | 120 VAC |
9050J Series
| Part | Termination Style | Function | Circuit | Voltage - Supply | Delay Time [Max] | Delay Time [Min] | Contact Rating @ Voltage | Timing Initiate Method | Relay Type | Mounting Type | Timing Adjustment Method | Delay Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
SQUARE D BY SCHNEIDER ELECTRIC | Plug In | Off-Delay | DPDT (2 Form C) | 24 VAC | 10 Min | 0.1 Min | 10 A 240 VAC | Input Voltage | Mechanical Relay | Socketable | Hand Dial | |
SQUARE D BY SCHNEIDER ELECTRIC | Plug In | Interval | DPDT (2 Form C) | 120 VAC | 60 Sec | 0.6 Sec | 10 A 240 VAC | Input Voltage | Mechanical Relay | Socketable | Hand Dial | |
SQUARE D BY SCHNEIDER ELECTRIC | Plug In | Off-Delay | DPDT (2 Form C) | 120 VAC | 10 Min | 0.1 Min | 10 A 240 VAC | Input Voltage Trigger Signal | Mechanical Relay | Socketable | Hand Dial | |
SQUARE D BY SCHNEIDER ELECTRIC | Plug In | Repeat Cycle | DPDT (2 Form C) | 120 VAC | 60 Sec | 0.6 Sec | 10 A 240 VAC | Input Voltage | Mechanical Relay | Socketable | Hand Dial | |
SQUARE D BY SCHNEIDER ELECTRIC | Plug In | Off-Delay | DPDT (2 Form C) | 120 VAC | 60 Sec | 0.6 Sec | 10 A 240 VAC | Input Voltage | Mechanical Relay | Socketable | Hand Dial | |
SQUARE D BY SCHNEIDER ELECTRIC | Plug In | Repeat Cycle | DPDT (2 Form C) | 120 VAC | 180 Sec | 1.8 Sec | 10 A 240 VAC | Input Voltage | Mechanical Relay | Socketable | Hand Dial | |
SQUARE D BY SCHNEIDER ELECTRIC | Plug In | On-Delay | DPDT (2 Form C) | 24 VAC | 10 s | 0.1 Sec | 10 A 240 VAC | Input Voltage | Mechanical Relay | Socketable | Hand Dial | |
SQUARE D BY SCHNEIDER ELECTRIC | Plug In | Off-Delay | DPDT (2 Form C) | 120 VAC | 120 Min | 1.2 Min | 10 A 240 VAC | Input Voltage | Mechanical Relay | Socketable | Hand Dial | |
SQUARE D BY SCHNEIDER ELECTRIC | Plug In | Interval | DPDT (2 Form C) | 120 VAC | 30 Min | 0.3 Min | 10 A 240 VAC | Input Voltage | Mechanical Relay | Socketable | Hand Dial | |
SQUARE D BY SCHNEIDER ELECTRIC | Plug In | On-Delay | DPDT (2 Form C) | 120 VAC | 10 A 240 VAC | Input Voltage | Mechanical Relay | Socketable | Fixed | 90 Sec |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 98.44 | |
Description
General part information
9050J Series
Off-Delay Time Delay Relay DPDT (2 Form C) 0.1 Min ~ 10 Min Delay 10A @ 240VAC Socketable
