UT072028SH
ActiveSouriau-Sunbank by Eaton

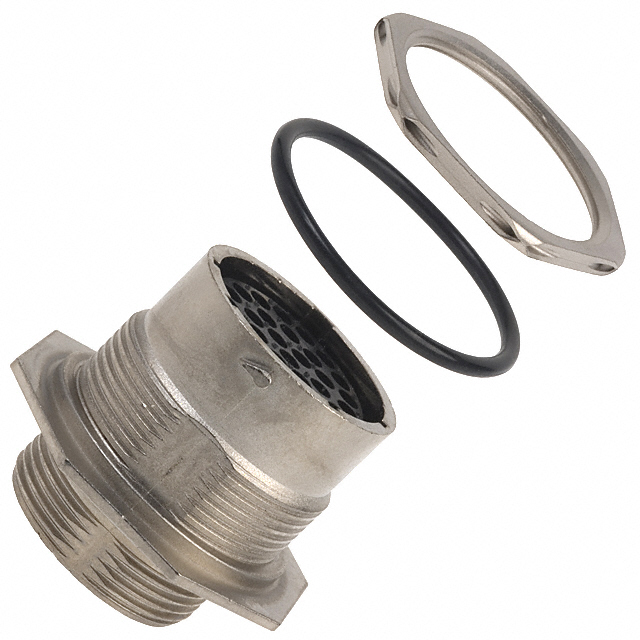

CONN RCPT HSG FMALE 28POS PNL MT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UT072028SH
ActiveSouriau-Sunbank by Eaton
CONN RCPT HSG FMALE 28POS PNL MT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UT072028SH |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 16 |
| Contact Type | Crimp and Solder |
| Fastening Type | Bayonet Lock |
| Housing Color | Silver |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Note | Contacts Not Included |
| Number of Positions | 28 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | N |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy, Halogen Free |
| Shell Size - Insert [Max] | 28 |
| Shell Size - Insert [Min] | 20 |
| Shielding | Shielded |
| Type | For Female Sockets |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 60.67 | |
| 10 | $ 47.04 | |||
| 25 | $ 42.72 | |||
| 50 | $ 39.80 | |||
| 100 | $ 37.17 | |||
| 250 | $ 34.06 | |||
Description
General part information
UT072 Series
28 Position Circular Connector Receptacle Housing Panel Mount
