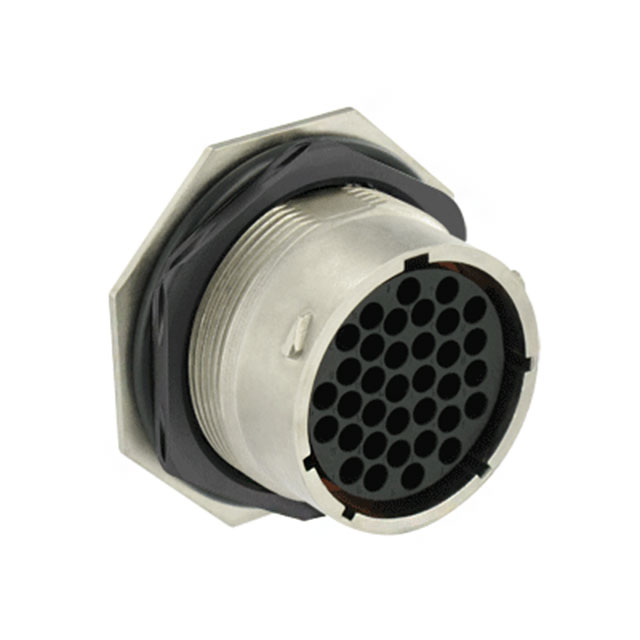

UT072235SH01
ActiveSouriau-Sunbank by Eaton
CONN RCPT HSG FMALE 35POS PNL MT
Deep-Dive with AI
Search across all available documentation for this part.
UT072235SH01
ActiveSouriau-Sunbank by Eaton
CONN RCPT HSG FMALE 35POS PNL MT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | UT072235SH01 |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 16 |
| Contact Type | Crimp and Solder |
| Fastening Type | Bayonet Lock |
| Housing Color | Silver |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Note | Contacts Not Included |
| Number of Positions | 35 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | N |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy, Halogen Free |
| Shell Size - Insert [Max] | 35 |
| Shell Size - Insert [Min] | 22 |
| Shielding | Shielded |
| Type | For Female Sockets |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 38.22 | |
Description
General part information
UT072 Series
35 Position Circular Connector Receptacle Housing Panel Mount
Documents
Technical documentation and resources
No documents available
