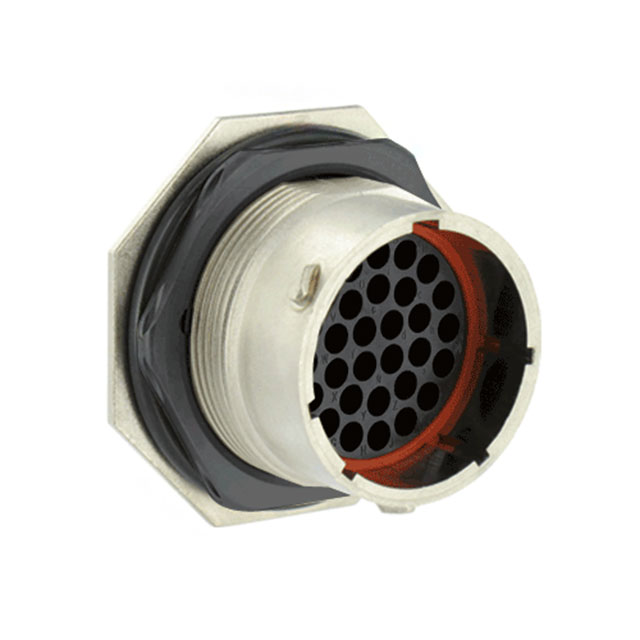

UT072030PH601

Active

Souriau-Sunbank by Eaton

CONN RCPT HSNG MALE 30POS PNL MT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UT072030PH601

Active

Souriau-Sunbank by Eaton

CONN RCPT HSNG MALE 30POS PNL MT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UT072030PH601

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp and Solder
Fastening Type	Bayonet Lock
Housing Color	Silver
Ingress Protection	IP68, IP69K
Insert Material	Thermoplastic, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Note	Contacts Not Included
Number of Positions	30
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Finish	Nickel
Shell Material	Zinc Alloy, Halogen Free
Shell Size - Insert [Max]	30
Shell Size - Insert [Min]	20
Shielding	Shielded
Type	For Male Pins

UT072 Series

Part	Note	Contact Type	Orientation	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Shell Finish	Contact Size	Contact Shape	Type	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Ingress Protection	Shell Material	Housing Color	Material Flammability Rating	Fastening Type	Connector Type	Number of Positions	Mounting Feature	Insert Material
Souriau-Sunbank by Eaton UT072235SH601	Contacts Not Included	Crimp and Solder	N	22	35	Nickel	16	Circular	For Female Sockets	-40 °C	105 ░C	Shielded	IP68 IP69K	Zinc Alloy Halogen Free	Silver	UL94 V-0	Bayonet Lock	Receptacle Housing	35	Bulkhead - Front Side Nut	Thermoplastic Glass Filled
Souriau-Sunbank by Eaton UT072028SH601	Contacts Not Included	Crimp and Solder	N	20	28	Nickel	16	Circular	For Female Sockets	-40 °C	105 ░C	Shielded	IP68 IP69K	Zinc Alloy Halogen Free	Silver	UL94 V-0	Bayonet Lock	Receptacle Housing	28	Bulkhead - Front Side Nut	Thermoplastic Glass Filled
Souriau-Sunbank by Eaton UT072028PH6	Contacts Not Included	Crimp and Solder	N	20	28	Nickel	16	Circular	For Male Pins	-40 °C	105 ░C	Shielded	IP68 IP69K	Zinc Alloy Halogen Free	Silver	UL94 V-0	Bayonet Lock	Receptacle Housing	28	Bulkhead - Front Side Nut	Thermoplastic Glass Filled
Souriau-Sunbank by Eaton UT072235PH01	Contacts Not Included	Crimp and Solder	N	22	35	Nickel	16	Circular	For Male Pins	-40 °C	105 ░C	Shielded	IP67 - Dust Tight Waterproof	Zinc Alloy Halogen Free	Silver	UL94 V-0	Bayonet Lock	Receptacle Housing	35	Bulkhead - Front Side Nut	Thermoplastic Glass Filled
Souriau-Sunbank by Eaton UT072235SH01	Contacts Not Included	Crimp and Solder	N	22	35	Nickel	16	Circular	For Female Sockets	-40 °C	105 ░C	Shielded	IP67 - Dust Tight Waterproof	Zinc Alloy Halogen Free	Silver	UL94 V-0	Bayonet Lock	Receptacle Housing	35	Bulkhead - Front Side Nut	Thermoplastic Glass Filled
Souriau-Sunbank by Eaton UT072028SH6	Contacts Not Included	Crimp and Solder	N	20	28	Nickel	16	Circular	For Female Sockets	-40 °C	105 ░C	Shielded	IP68 IP69K	Zinc Alloy Halogen Free	Silver	UL94 V-0	Bayonet Lock	Receptacle Housing	28	Bulkhead - Front Side Nut	Thermoplastic Glass Filled
Souriau-Sunbank by Eaton UT072448SH6	Contacts Not Included	Crimp and Solder	N	24	48	Nickel	16	Circular	For Female Sockets	-40 °C	105 ░C	Shielded	IP68 IP69K	Zinc Alloy Halogen Free	Silver	UL94 V-0	Bayonet Lock	Receptacle Housing	48	Bulkhead - Front Side Nut	Thermoplastic Glass Filled
Souriau-Sunbank by Eaton UT072030PH601	Contacts Not Included	Crimp and Solder	N	20	30	Nickel	16	Circular	For Male Pins	-40 °C	105 ░C	Shielded	IP68 IP69K	Zinc Alloy Halogen Free	Silver	UL94 V-0	Bayonet Lock	Receptacle Housing	30	Bulkhead - Front Side Nut	Thermoplastic Glass Filled
Souriau-Sunbank by Eaton UT072028SH	Contacts Not Included	Crimp and Solder	N	20	28	Nickel	16	Circular	For Female Sockets	-40 °C	105 ░C	Shielded	IP67 - Dust Tight Waterproof	Zinc Alloy Halogen Free	Silver	UL94 V-0	Bayonet Lock	Receptacle Housing	28	Bulkhead - Front Side Nut	Thermoplastic Glass Filled
Souriau-Sunbank by Eaton UT072235PH	Contacts Not Included	Crimp and Solder	N	22	35	Nickel	16	Circular	For Male Pins	-40 °C	105 ░C	Shielded	IP67 - Dust Tight Waterproof	Zinc Alloy Halogen Free	Silver	UL94 V-0	Bayonet Lock	Receptacle Housing	35	Bulkhead - Front Side Nut	Thermoplastic Glass Filled

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 35.72

Description

General part information

UT072 Series

30 Position Circular Connector Receptacle Housing Panel Mount
