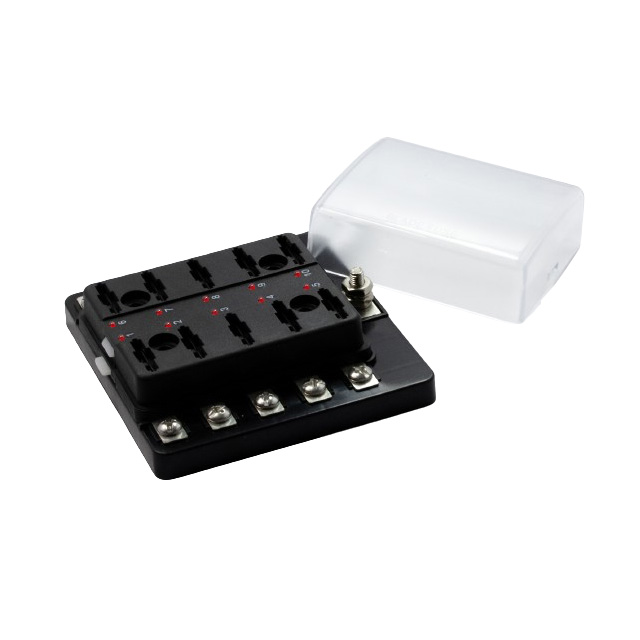

BLR-I-510
ActiveOptiFuse
REGULAR FUSE BLOCK, 10 POLE LED
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BLR-I-510
ActiveOptiFuse
REGULAR FUSE BLOCK, 10 POLE LED
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BLR-I-510 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Copper |
| Current Rating (Amps) | 30 A |
| For Use With/Related Products | APR, ANR |
| Fuse Size [x] | 19.1 mm |
| Fuse Size [x] | 0.75 " |
| Fuse Size [y] | 5.1 mm |
| Fuse Size [y] | 0.2 in |
| Fuse Type | Blade |
| Fuseholder Type | Block |
| Mounting Type | Chassis Mount |
| Number of Circuits | 10 |
| Orientation | Horizontal and Vertical |
| Termination Style | Screw Terminal |
| Voltage | 32 V |
BLR-I Series
| Part | Number of Circuits | Current Rating (Amps) | Fuse Size [y] | Fuse Size [x] | Fuse Size [y] | Fuse Size [x] | Fuseholder Type | For Use With/Related Products | Mounting Type | Orientation | Voltage | Termination Style | Fuse Type | Contact Material | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
OptiFuse | 6 | 100 A | 5.1 mm | 19.1 mm | 0.2 in | 0.75 " | Block | ANR APR | Chassis Mount | Horizontal and Vertical | 32 V | Screw Terminal | Blade | Copper | |
OptiFuse | 10 | 30 A | 5.1 mm | 19.1 mm | 0.2 in | 0.75 " | Block | ANR APR | Chassis Mount | Horizontal and Vertical | 32 V | Screw Terminal | Blade | Copper | Tin |
OptiFuse | 12 | 100 A | 5.1 mm | 19.1 mm | 0.2 in | 0.75 " | Block | ANR APR | Chassis Mount | Horizontal and Vertical | 32 V | Screw Terminal | Blade | Copper | |
OptiFuse | 10 | 100 A | 5.1 mm | 19.1 mm | 0.2 in | 0.75 " | Block | ANR APR | Chassis Mount | Horizontal and Vertical | 32 V | Quick Connect - 0.250" (6.3mm) | Blade | Copper | Tin |
OptiFuse | 4 | 100 A | 5.1 mm | 19.1 mm | 0.2 in | 0.75 " | Block | ANR APR | Chassis Mount | Horizontal and Vertical | 32 V | Quick Connect - 0.250" (6.3mm) | Blade | Copper | Tin |
OptiFuse | 1 | 30 A | 5.1 mm | 19.1 mm | 0.2 in | 0.75 " | Block | ANR APR | Chassis Mount | Horizontal and Vertical | 24 V | Quick Connect - 0.250" (6.3mm) | Blade | Brass | Tin |
OptiFuse | 4 | 100 A | 5.1 mm | 19.1 mm | 0.2 in | 0.75 " | Block | ANR APR | Chassis Mount | Horizontal and Vertical | 32 V | Quick Connect - 0.250" (6.3mm) | Blade | Copper | Tin |
OptiFuse | 10 | 100 A | 5.1 mm | 19.1 mm | 0.2 in | 0.75 " | Block | ANR APR | Chassis Mount | Horizontal and Vertical | 32 V | Quick Connect - 0.250" (6.3mm) | Blade | Copper | Tin |
OptiFuse | 6 | 100 A | 5.1 mm | 19.1 mm | 0.2 in | 0.75 " | Block | ANR APR | Chassis Mount | Horizontal and Vertical | 32 V | Quick Connect - 0.250" (6.3mm) | Blade | Copper | Tin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 33.10 | |
| 10 | $ 31.23 | |||
| 25 | $ 29.42 | |||
| 50 | $ 27.64 | |||
| 100 | $ 25.43 | |||
| 250 | $ 24.99 | |||
| 500 | $ 24.21 | |||
| 1000 | $ 23.42 | |||
Description
General part information
BLR-I Series
Fuse Block 30 A 32V 10 Circuit Blade Chassis Mount
Documents
Technical documentation and resources
