BLR-I-906-G

Active

OptiFuse

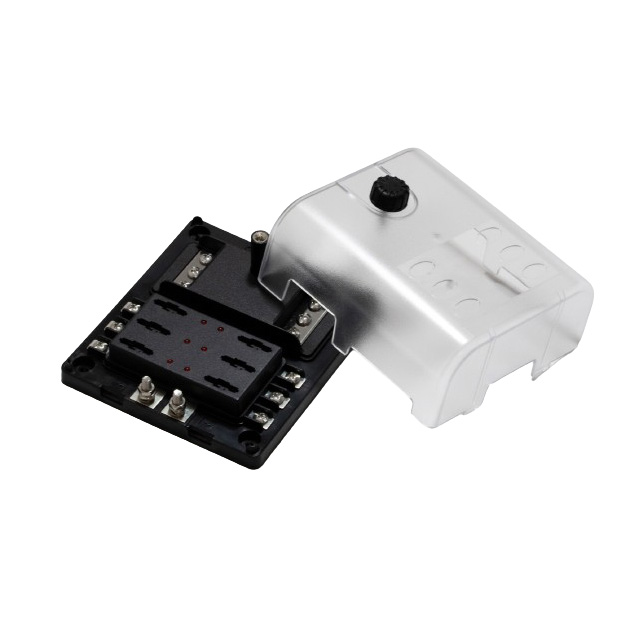

REG FUSE BLOCK,6 POLE LED&GROUND

Search across all available documentation for this part.

Active

OptiFuse

REG FUSE BLOCK,6 POLE LED&GROUND

Technical Specifications

Parameters and characteristics for this part

Specification	BLR-I-906-G

Contact Material	Copper
Current Rating (Amps)	100 A
For Use With/Related Products	APR, ANR
Fuse Size [x]	19.1 mm
Fuse Size [x]	0.75 "
Fuse Size [y]	5.1 mm
Fuse Size [y]	0.2 in
Fuse Type	Blade
Fuseholder Type	Block
Mounting Type	Chassis Mount
Number of Circuits	6
Orientation	Horizontal and Vertical
Termination Style	Screw Terminal
Voltage	32 V

Part	Number of Circuits	Current Rating (Amps)	Fuse Size [y]	Fuse Size [x]	Fuse Size [y]	Fuse Size [x]	Fuseholder Type	For Use With/Related Products	Mounting Type	Orientation	Voltage	Termination Style	Fuse Type	Contact Material	Contact Finish
OptiFuse BLR-I-906-G	6	100 A	5.1 mm	19.1 mm	0.2 in	0.75 "	Block	ANR APR	Chassis Mount	Horizontal and Vertical	32 V	Screw Terminal	Blade	Copper
OptiFuse BLR-I-510	10	30 A	5.1 mm	19.1 mm	0.2 in	0.75 "	Block	ANR APR	Chassis Mount	Horizontal and Vertical	32 V	Screw Terminal	Blade	Copper	Tin
OptiFuse BLR-I-912-G	12	100 A	5.1 mm	19.1 mm	0.2 in	0.75 "	Block	ANR APR	Chassis Mount	Horizontal and Vertical	32 V	Screw Terminal	Blade	Copper
OptiFuse BLR-I-310-G	10	100 A	5.1 mm	19.1 mm	0.2 in	0.75 "	Block	ANR APR	Chassis Mount	Horizontal and Vertical	32 V	Quick Connect - 0.250" (6.3mm)	Blade	Copper	Tin
OptiFuse BLR-I-304	4	100 A	5.1 mm	19.1 mm	0.2 in	0.75 "	Block	ANR APR	Chassis Mount	Horizontal and Vertical	32 V	Quick Connect - 0.250" (6.3mm)	Blade	Copper	Tin
OptiFuse BLR-I-301	1	30 A	5.1 mm	19.1 mm	0.2 in	0.75 "	Block	ANR APR	Chassis Mount	Horizontal and Vertical	24 V	Quick Connect - 0.250" (6.3mm)	Blade	Brass	Tin
OptiFuse BLR-I-604	4	100 A	5.1 mm	19.1 mm	0.2 in	0.75 "	Block	ANR APR	Chassis Mount	Horizontal and Vertical	32 V	Quick Connect - 0.250" (6.3mm)	Blade	Copper	Tin
OptiFuse BLR-I-310	10	100 A	5.1 mm	19.1 mm	0.2 in	0.75 "	Block	ANR APR	Chassis Mount	Horizontal and Vertical	32 V	Quick Connect - 0.250" (6.3mm)	Blade	Copper	Tin
OptiFuse BLR-I-306	6	100 A	5.1 mm	19.1 mm	0.2 in	0.75 "	Block	ANR APR	Chassis Mount	Horizontal and Vertical	32 V	Quick Connect - 0.250" (6.3mm)	Blade	Copper	Tin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fuse Block 100 A 32V 6 Circuit Blade Chassis Mount
