BLR-I-310

Active

OptiFuse

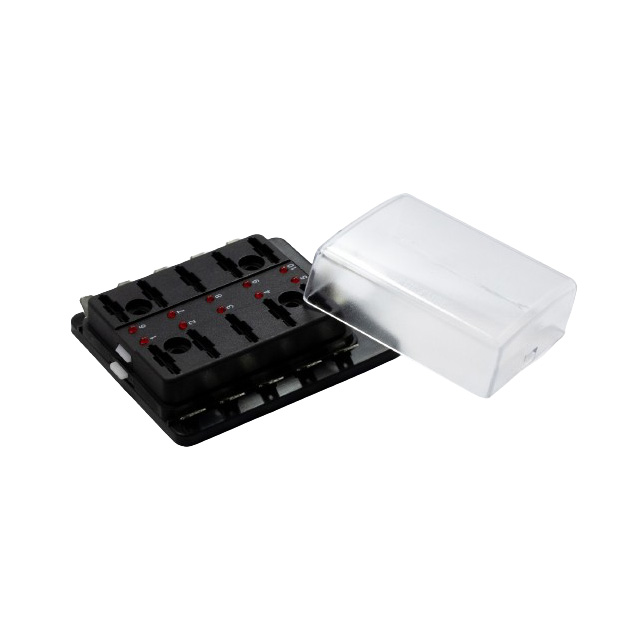

REGULAR FUSE BLOCK, 10 POLE LED

Search across all available documentation for this part.

Active

OptiFuse

REGULAR FUSE BLOCK, 10 POLE LED

Technical Specifications

Parameters and characteristics for this part

Specification	BLR-I-310

Contact Finish	Tin
Contact Material	Copper
Current Rating (Amps)	100 A
For Use With/Related Products	APR, ANR
Fuse Size [x]	19.1 mm
Fuse Size [x]	0.75 "
Fuse Size [y]	5.1 mm
Fuse Size [y]	0.2 in
Fuse Type	Blade
Fuseholder Type	Block
Mounting Type	Chassis Mount
Number of Circuits	10
Orientation	Horizontal and Vertical
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage	32 V

Part	Number of Circuits	Current Rating (Amps)	Fuse Size [y]	Fuse Size [x]	Fuse Size [y]	Fuse Size [x]	Fuseholder Type	For Use With/Related Products	Mounting Type	Orientation	Voltage	Termination Style	Fuse Type	Contact Material	Contact Finish
OptiFuse BLR-I-906-G	6	100 A	5.1 mm	19.1 mm	0.2 in	0.75 "	Block	ANR APR	Chassis Mount	Horizontal and Vertical	32 V	Screw Terminal	Blade	Copper
OptiFuse BLR-I-510	10	30 A	5.1 mm	19.1 mm	0.2 in	0.75 "	Block	ANR APR	Chassis Mount	Horizontal and Vertical	32 V	Screw Terminal	Blade	Copper	Tin
OptiFuse BLR-I-912-G	12	100 A	5.1 mm	19.1 mm	0.2 in	0.75 "	Block	ANR APR	Chassis Mount	Horizontal and Vertical	32 V	Screw Terminal	Blade	Copper
OptiFuse BLR-I-310-G	10	100 A	5.1 mm	19.1 mm	0.2 in	0.75 "	Block	ANR APR	Chassis Mount	Horizontal and Vertical	32 V	Quick Connect - 0.250" (6.3mm)	Blade	Copper	Tin
OptiFuse BLR-I-304	4	100 A	5.1 mm	19.1 mm	0.2 in	0.75 "	Block	ANR APR	Chassis Mount	Horizontal and Vertical	32 V	Quick Connect - 0.250" (6.3mm)	Blade	Copper	Tin
OptiFuse BLR-I-301	1	30 A	5.1 mm	19.1 mm	0.2 in	0.75 "	Block	ANR APR	Chassis Mount	Horizontal and Vertical	24 V	Quick Connect - 0.250" (6.3mm)	Blade	Brass	Tin
OptiFuse BLR-I-604	4	100 A	5.1 mm	19.1 mm	0.2 in	0.75 "	Block	ANR APR	Chassis Mount	Horizontal and Vertical	32 V	Quick Connect - 0.250" (6.3mm)	Blade	Copper	Tin
OptiFuse BLR-I-310	10	100 A	5.1 mm	19.1 mm	0.2 in	0.75 "	Block	ANR APR	Chassis Mount	Horizontal and Vertical	32 V	Quick Connect - 0.250" (6.3mm)	Blade	Copper	Tin
OptiFuse BLR-I-306	6	100 A	5.1 mm	19.1 mm	0.2 in	0.75 "	Block	ANR APR	Chassis Mount	Horizontal and Vertical	32 V	Quick Connect - 0.250" (6.3mm)	Blade	Copper	Tin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fuse Block 100 A 32V 10 Circuit Blade Chassis Mount
