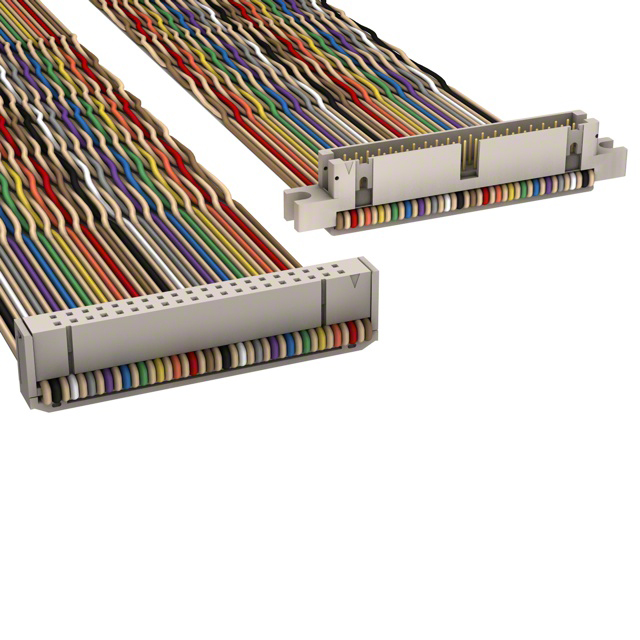

M3BYK-4060K

Active

3M (TC)

IDC CABLE - MSR40K/MC40F/MPD40K

Deep-Dive with AI

Search across all available documentation for this part.

Documents1700 Series Datasheet +1

M3BYK-4060K

Active

3M (TC)

IDC CABLE - MSR40K/MC40F/MPD40K

Deep-Dive with AI

Documents1700 Series Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M3BYK-4060K

Cable Termination	IDC
Color	Multiple, Twisted Pair (Flat)
Connector Type	Socket to Plug
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Flange, Strain Relief (Plug), Polarizing Key, Strain Relief (Socket)
Length	1.52 m
Length	5 '
Number of Positions	40
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

M3BYK Series

Part	Length	Length	Number of Positions	Pitch - Connector	Pitch - Connector	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Cable Termination	Connector Type	Number of Rows	Pitch - Cable	Pitch - Cable	Shielding	Color	Features	Number of Positions	Length [x]	Length [x]	Length	Length
3M (TC) M3BYK-1620K	508 mm	1.67 ft	16	0.1 in	2.54 mm	Gold	0.76 Ám	30 Áin	IDC	Socket to Plug	2	0.05 "	1.27 mm	Unshielded	Multiple Twisted Pair (Flat)	Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket)
3M (TC) M3BYK-5018J				0.1 in	2.54 mm	Gold	0.76 Ám	30 Áin	IDC	Socket to Plug	2	0.05 "	1.27 mm	Unshielded		Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	50	457.2 mm	1.5 ft
3M (TC) M3BYK-1618R			16	0.1 in	2.54 mm	Gold	0.76 Ám	30 Áin	IDC	Socket to Plug	2	0.05 "	1.27 mm	Unshielded	Multiple Ribbon	Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket)		457.2 mm	1.5 ft
3M (TC) M3BYK-1036J				0.1 in	2.54 mm	Gold	0.76 Ám	30 Áin	IDC	Socket to Plug	2	0.05 "	1.27 mm	Unshielded		Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	10	914.4 mm	3 ft
3M (TC) M3BYK-2018J				0.1 in	2.54 mm	Gold	0.76 Ám	30 Áin	IDC	Socket to Plug	2	0.05 "	1.27 mm	Unshielded		Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	20	457.2 mm	1.5 ft
3M (TC) M3BYK-2020K	508 mm	1.67 ft		0.1 in	2.54 mm	Gold	0.76 Ám	30 Áin	IDC	Socket to Plug	2	0.05 "	1.27 mm	Unshielded	Multiple Twisted Pair (Flat)	Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	20
3M (TC) M3BYK-4006J	152.4 mm			0.1 in	2.54 mm	Gold	0.76 Ám	30 Áin	IDC	Socket to Plug	2	0.05 "	1.27 mm	Unshielded		Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	40			6 "	0.5 '
3M (TC) M3BYK-5060K	1.52 m	5 '		0.1 in	2.54 mm	Gold	0.76 Ám	30 Áin	IDC	Socket to Plug	2	0.05 "	1.27 mm	Unshielded	Multiple Twisted Pair (Flat)	Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	50
3M (TC) M3BYK-4060K	1.52 m	5 '		0.1 in	2.54 mm	Gold	0.76 Ám	30 Áin	IDC	Socket to Plug	2	0.05 "	1.27 mm	Unshielded	Multiple Twisted Pair (Flat)	Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	40
3M (TC) M3BYK-3018J				0.1 in	2.54 mm	Gold	0.76 Ám	30 Áin	IDC	Socket to Plug	2	0.05 "	1.27 mm	Unshielded		Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	30	457.2 mm	1.5 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 54.25
		10	$ 42.03
		25	$ 38.15
		50	$ 35.54
		100	$ 33.17
		250	$ 30.38

Description

General part information

M3BYK Series

40 Position Cable Assembly Rectangular Socket to Plug 5.00' (1.52m)

Documents

Technical documentation and resources

1700 Series

Datasheet

4600 Series Drawing

Datasheet
