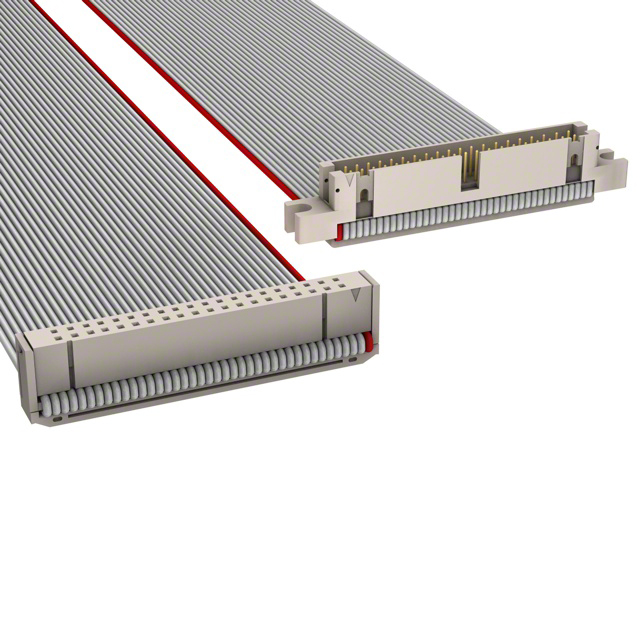

M3BYK-4006J
Active3M (TC)
IDC CABLE - MSR40K/MC40G/MPD40K
Deep-Dive with AI
Search across all available documentation for this part.
M3BYK-4006J
Active3M (TC)
IDC CABLE - MSR40K/MC40G/MPD40K
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M3BYK-4006J |
|---|---|
| Cable Termination | IDC |
| Connector Type | Socket to Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Features | Flange, Strain Relief (Plug), Polarizing Key, Strain Relief (Socket) |
| Length | 152.4 mm |
| Length | 6 " |
| Length | 0.5 ' |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Pitch - Cable | 0.05 " |
| Pitch - Cable | 1.27 mm |
| Pitch - Connector | 0.1 in |
| Pitch - Connector | 2.54 mm |
| Shielding | Unshielded |
M3BYK Series
| Part | Length | Length | Number of Positions | Pitch - Connector | Pitch - Connector | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Cable Termination | Connector Type | Number of Rows | Pitch - Cable | Pitch - Cable | Shielding | Color | Features | Number of Positions | Length [x] | Length [x] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3M (TC) | 508 mm | 1.67 ft | 16 | 0.1 in | 2.54 mm | Gold | 0.76 Ám | 30 Áin | IDC | Socket to Plug | 2 | 0.05 " | 1.27 mm | Unshielded | Multiple Twisted Pair (Flat) | Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket) | |||||
3M (TC) | 0.1 in | 2.54 mm | Gold | 0.76 Ám | 30 Áin | IDC | Socket to Plug | 2 | 0.05 " | 1.27 mm | Unshielded | Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket) | 50 | 457.2 mm | 1.5 ft | ||||||
3M (TC) | 16 | 0.1 in | 2.54 mm | Gold | 0.76 Ám | 30 Áin | IDC | Socket to Plug | 2 | 0.05 " | 1.27 mm | Unshielded | Multiple Ribbon | Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket) | 457.2 mm | 1.5 ft | |||||
3M (TC) | 0.1 in | 2.54 mm | Gold | 0.76 Ám | 30 Áin | IDC | Socket to Plug | 2 | 0.05 " | 1.27 mm | Unshielded | Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket) | 10 | 914.4 mm | 3 ft | ||||||
3M (TC) | 0.1 in | 2.54 mm | Gold | 0.76 Ám | 30 Áin | IDC | Socket to Plug | 2 | 0.05 " | 1.27 mm | Unshielded | Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket) | 20 | 457.2 mm | 1.5 ft | ||||||
3M (TC) | 508 mm | 1.67 ft | 0.1 in | 2.54 mm | Gold | 0.76 Ám | 30 Áin | IDC | Socket to Plug | 2 | 0.05 " | 1.27 mm | Unshielded | Multiple Twisted Pair (Flat) | Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket) | 20 | |||||
3M (TC) | 152.4 mm | 0.1 in | 2.54 mm | Gold | 0.76 Ám | 30 Áin | IDC | Socket to Plug | 2 | 0.05 " | 1.27 mm | Unshielded | Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket) | 40 | 6 " | 0.5 ' | |||||
3M (TC) | 1.52 m | 5 ' | 0.1 in | 2.54 mm | Gold | 0.76 Ám | 30 Áin | IDC | Socket to Plug | 2 | 0.05 " | 1.27 mm | Unshielded | Multiple Twisted Pair (Flat) | Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket) | 50 | |||||
3M (TC) | 1.52 m | 5 ' | 0.1 in | 2.54 mm | Gold | 0.76 Ám | 30 Áin | IDC | Socket to Plug | 2 | 0.05 " | 1.27 mm | Unshielded | Multiple Twisted Pair (Flat) | Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket) | 40 | |||||
3M (TC) | 0.1 in | 2.54 mm | Gold | 0.76 Ám | 30 Áin | IDC | Socket to Plug | 2 | 0.05 " | 1.27 mm | Unshielded | Flange Polarizing Key Strain Relief (Plug) Strain Relief (Socket) | 30 | 457.2 mm | 1.5 ft |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 34.86 | |
| 10 | $ 26.93 | |||
| 25 | $ 24.41 | |||
| 50 | $ 22.71 | |||
| 100 | $ 21.17 | |||
| 250 | $ 19.35 | |||
| 500 | $ 18.13 | |||
Description
General part information
M3BYK Series
40 Position Cable Assembly Rectangular Socket to Plug 0.500' (152.40mm, 6.00")
