M3BYK-2018J
Active3M (TC)
IDC CABLE - MSR20K/MC20G/MPD20K
Deep-Dive with AI
Search across all available documentation for this part.
M3BYK-2018J
Active3M (TC)
IDC CABLE - MSR20K/MC20G/MPD20K
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M3BYK-2018J |
|---|---|
| Cable Termination | IDC |
| Connector Type | Socket to Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Features | Flange, Strain Relief (Plug), Polarizing Key, Strain Relief (Socket) |
| Length [x] | 457.2 mm |
| Length [x] | 1.5 ft |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Pitch - Cable | 0.05 " |
| Pitch - Cable | 1.27 mm |
| Pitch - Connector | 0.1 in |
| Pitch - Connector | 2.54 mm |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 16.19 | |
| 10 | $ 14.03 | |||
| 25 | $ 13.30 | |||
| 50 | $ 13.11 | |||
| 100 | $ 11.56 | |||
| 250 | $ 10.79 | |||
| 500 | $ 10.56 | |||
Description
General part information
M3BYK Series

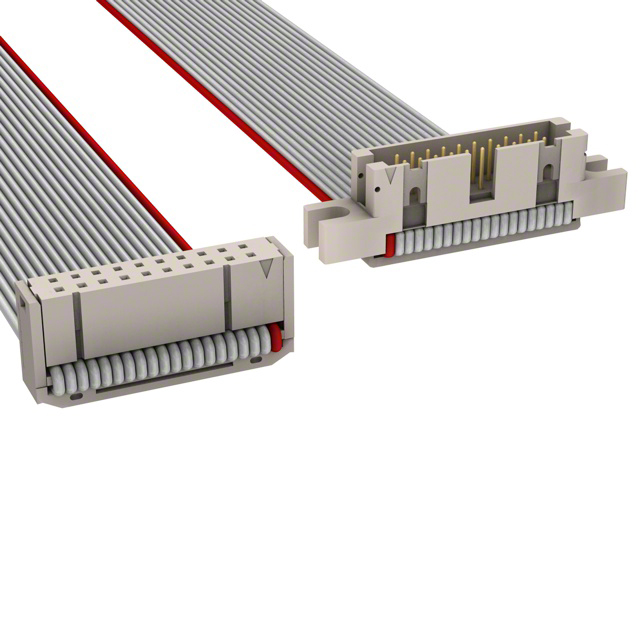

20 Position Cable Assembly Rectangular Socket to Plug 1.50' (457.20mm)
Documents
Technical documentation and resources
