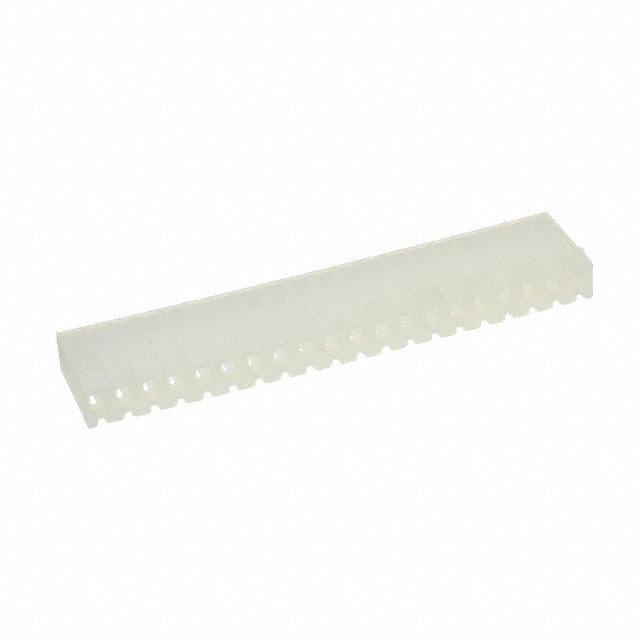

0009503201
ActiveMolex
CONN RCPT HSG 20POS 3.96MM
Deep-Dive with AI
Search across all available documentation for this part.
0009503201
ActiveMolex
CONN RCPT HSG 20POS 3.96MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0009503201 |
|---|---|
| Color | Natural |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Non-Gendered |
| Fastening Type | Locking Ramp |
| Insulation Material | Polyamide (PA), Nylon |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 20 |
| Number of Rows | 1 |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.04 | |
| 10 | $ 0.78 | |||
| 25 | $ 0.70 | |||
| 50 | $ 0.65 | |||
| 100 | $ 0.60 | |||
| 250 | $ 0.55 | |||
| 500 | $ 0.52 | |||
| 1000 | $ 0.49 | |||
| 2500 | $ 0.47 | |||
Description
General part information
000950 Series
20 Rectangular Connectors - Housings Receptacle Natural 0.156" (3.96mm)
Documents
Technical documentation and resources
No documents available
