0009508103
ActiveMolex

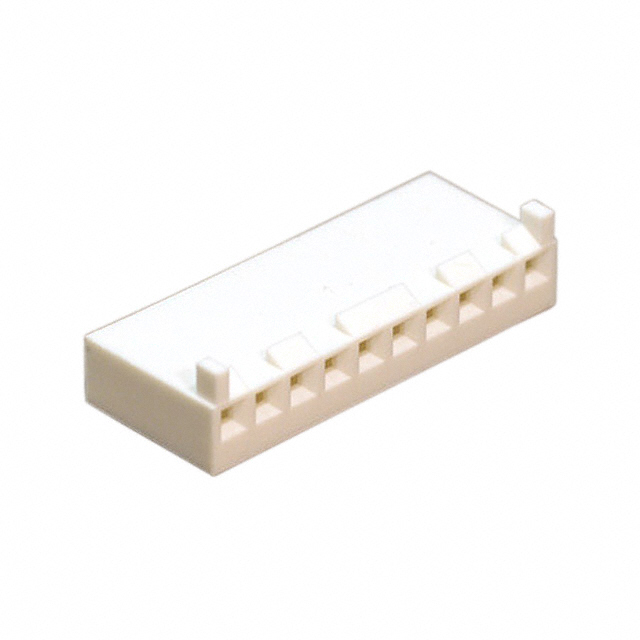

CONN HOUSING RCP 10 POS 3.96MM CRIMP ST CABLE MOUNT NATURAL KK® BAG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
0009508103
ActiveMolex
CONN HOUSING RCP 10 POS 3.96MM CRIMP ST CABLE MOUNT NATURAL KK® BAG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 0009508103 |
|---|---|
| Color | Natural |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Non-Gendered |
| Fastening Type | Locking Ramp |
| Features | Polarizing Key |
| Insulation Material | Polyester, Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.57 | |
| 10 | $ 0.42 | |||
| 25 | $ 0.38 | |||
| 50 | $ 0.35 | |||
| 100 | $ 0.32 | |||
| 250 | $ 0.29 | |||
| 500 | $ 0.27 | |||
| 1000 | $ 0.26 | |||
| 2500 | $ 0.24 | |||
Description
General part information
000950 Series
10 Rectangular Connectors - Housings Receptacle Natural 0.156" (3.96mm)
