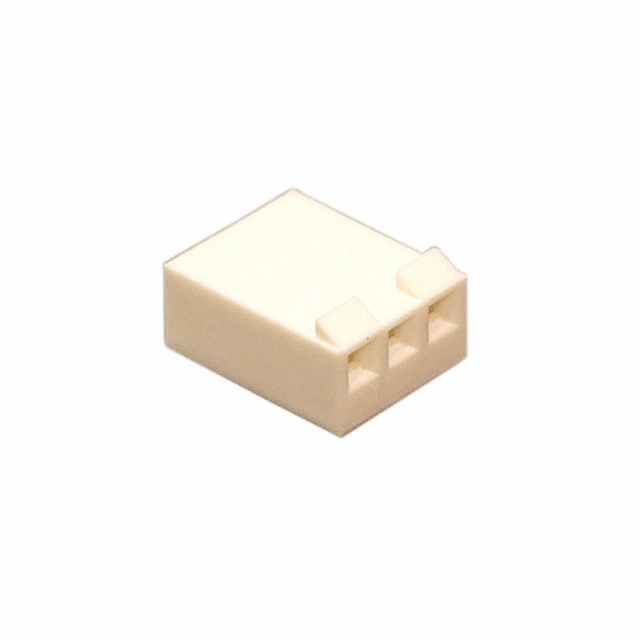

CONN RCPT HSG 3POS 3.96MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0009508031

Active

Molex

CONN RCPT HSG 3POS 3.96MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0009508031

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Non-Gendered
Fastening Type	Locking Ramp
Insulation Material	Polyester, Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Rows	1
Pitch [x]	0.156 in
Pitch [x]	3.96 mm

000950 Series

Part	Fastening Type	Contact Termination	Color	Pitch [x]	Pitch [x]	Mounting Type	Insulation Material	Connector Type	Number of Rows	Contact Type	Note	Number of Positions	Features	Number of Positions
Molex 0009509060	Locking Ramp	Crimp	Natural	0.156 in	3.96 mm	Free Hanging (In-Line)	Polyester Glass Filled	Receptacle	1	Non-Gendered	Contacts Not Included	6	Position 5 Molded Closed
Molex 0009508031	Locking Ramp	Crimp	Natural	0.156 in	3.96 mm	Free Hanging (In-Line)	Polyester Glass Filled	Receptacle	1	Non-Gendered	Contacts Not Included
Molex 0009508073	Locking Ramp	Crimp	Natural	0.156 in	3.96 mm	Free Hanging (In-Line)	Polyester Glass Filled	Receptacle	1	Non-Gendered	Contacts Not Included	7	Polarizing Key
Molex 0009508111	Locking Ramp	Crimp	Natural	0.156 in	3.96 mm	Free Hanging (In-Line)	Polyester Glass Filled	Receptacle	1	Non-Gendered	Contacts Not Included	11
Molex 0009503163	Locking Ramp	Crimp	Natural	0.156 in	3.96 mm	Free Hanging (In-Line)	Nylon Polyamide (PA)	Receptacle	1	Non-Gendered	Contacts Not Included		Position 2 Molded Closed	16
Molex 0009508103	Locking Ramp	Crimp	Natural	0.156 in	3.96 mm	Free Hanging (In-Line)	Polyester Glass Filled	Receptacle	1	Non-Gendered	Contacts Not Included	10	Polarizing Key
Molex 0009503021	Locking Ramp	Crimp	Natural	0.156 in	3.96 mm	Free Hanging (In-Line)	Nylon Polyamide (PA)	Receptacle	1	Non-Gendered	Contacts Not Included	2
Molex 0009503201	Locking Ramp	Crimp	Natural	0.156 in	3.96 mm	Free Hanging (In-Line)	Nylon Polyamide (PA)	Receptacle	1	Non-Gendered	Contacts Not Included	20
Molex 0009507141		Crimp	Natural	0.156 in	3.96 mm	Free Hanging (In-Line)	Nylon Polyamide (PA)	Receptacle	1	Non-Gendered	Contacts Not Included	14
Molex 0009508081	Locking Ramp	Crimp	Natural	0.156 in	3.96 mm	Free Hanging (In-Line)	Polyester Glass Filled	Receptacle	1	Non-Gendered	Contacts Not Included	8

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.21
		10	$ 0.17
		100	$ 0.12
		1000	$ 0.10
		2500	$ 0.09

Description

General part information

000950 Series

3 Rectangular Connectors - Housings Receptacle Natural 0.156" (3.96mm)
