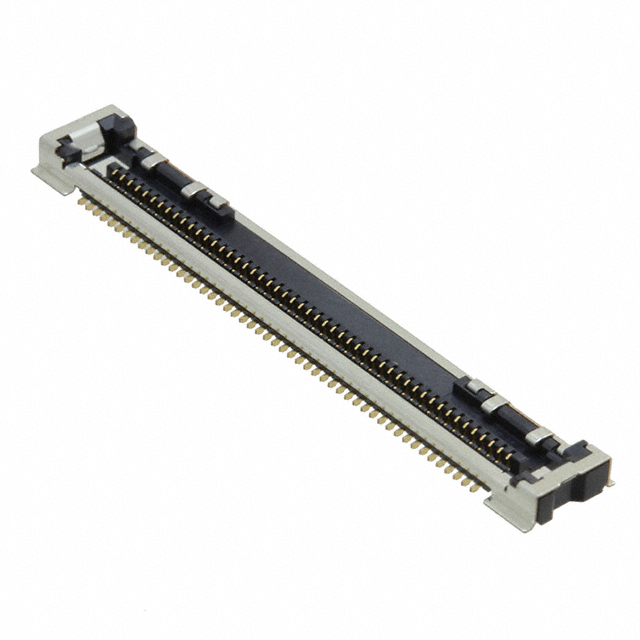

DF80-50S-0.5V(51)

Active

Hirose Electric USA, Inc.

CONN RCPT 50POS 0.02 GOLD SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDF80-50S-0.5V(51) Spec Datasheet

DF80-50S-0.5V(51)

Active

Hirose Electric USA, Inc.

CONN RCPT 50POS 0.02 GOLD SMD

Deep-Dive with AI

DocumentsDF80-50S-0.5V(51) Spec Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF80-50S-0.5V(51)

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	1.97 Áin
Contact Finish Thickness - Mating	0.05 Ám
Contact Finish Thickness - Post	0.05 µm
Contact Finish Thickness - Post	1.97 µin
Contact Material	Phosphor Bronze
Contact Type	Center Strip Contact
Current Rating (Amps)	0.5 A
Fastening Type	Friction Lock
Features	Solder Retention
Insulation Color	Black
Insulation Height	1.65 mm
Insulation Height	0.065 "
Insulation Material	Liquid Crystal Polymer (LCP), Halogen Free
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-35 °C
Pitch - Mating	0.02 in
Pitch - Mating	0.5 mm
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	50 V

DF80 Series

Part	Number of Positions	Number of Rows	Features	Pitch [x]	Pitch [x]	Contact Type	Connector Type	Cable Termination	Mounting Type	Contact Finish	Fastening Type	Wire Gauge [Max]	Wire Gauge [Min]	Color	Wire Type	For Use With/Related Products	Accessory Type	Termination	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Contact Finish - Post	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Insulation Material	Voltage Rating	Insulation Height	Insulation Height	Style
Hirose Electric USA, Inc. DF80-30P-0.5SD(52)	30	1	Closed End	0.5 mm	0.02 in	Outer Shroud Contact	Plug	Solder	Free Hanging (In-Line) Right Angle	Gold	Latch Lock	36 AWG 46 AWG	32 AWG 40 AWG	Black	Discrete or Ribbon Cable
Hirose Electric USA, Inc. DF80-50P-SHL(52)	50															DF80 Series	Shell
Hirose Electric USA, Inc. DF80-50S-0.5V(51)	50	1	Solder Retention			Center Strip Contact	Receptacle		Surface Mount		Friction Lock							Solder	Phosphor Bronze	-35 °C	85 °C	0.05 µm	1.97 µin	Black	Gold	UL94 V-0	0.02 in	0.5 mm	0.5 A	All	1.97 Áin	0.05 Ám	Gold	Liquid Crystal Polymer (LCP) Halogen Free	50 V	1.65 mm	0.065 "	Board to Cable/Wire
Hirose Electric USA, Inc. DF80-50P-SHL	50															DF80 Series	Shield
Hirose Electric USA, Inc. DF80-40P-0.5SD(52)	40	1	Closed End	0.5 mm	0.02 in	Outer Shroud Contact	Plug	Solder	Free Hanging (In-Line) Right Angle	Gold	Latch Lock	36 AWG 46 AWG	32 AWG 40 AWG	Black	Discrete or Ribbon Cable

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.60
		10	$ 1.30
		25	$ 1.20
		50	$ 1.13
		100	$ 1.06
		250	$ 0.98
		500	$ 0.92
		1000	$ 0.86
		2500	$ 0.80
	Digi-Reel®	1	$ 1.72
		10	$ 1.50
		25	$ 1.43
		50	$ 1.40
		100	$ 1.34
		250	$ 1.21
		500	$ 1.11
		1000	$ 0.95
		2500	$ 0.89
	Tape & Reel (TR)	5000	$ 0.79

Description

General part information

DF80 Series

50 Position Receptacle Connector 0.020" (0.50mm) Surface Mount Gold

Documents

Technical documentation and resources

DF80-50S-0.5V(51) Spec

Datasheet
