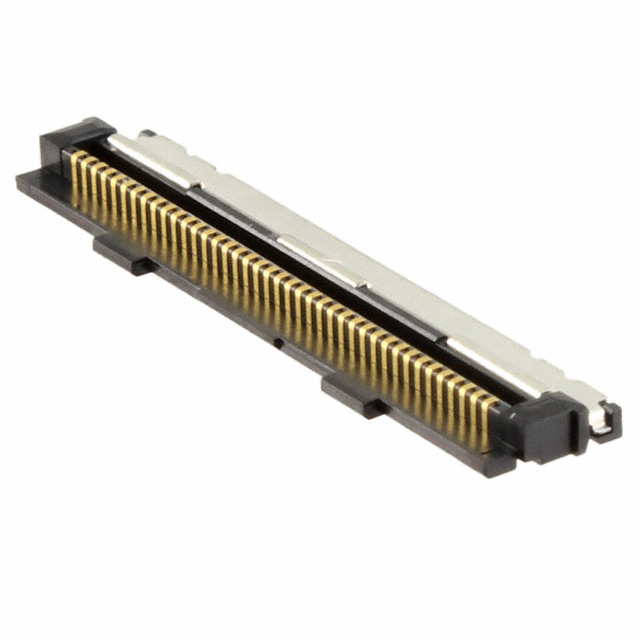

DF80-40P-0.5SD(52)

Obsolete

Hirose Electric USA, Inc.

CONN PLUG 40POS SOLDER GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DF80-40P-0.5SD(52)

Obsolete

Hirose Electric USA, Inc.

CONN PLUG 40POS SOLDER GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF80-40P-0.5SD(52)

Cable Termination	Solder
Color	Black
Connector Type	Plug
Contact Finish	Gold
Contact Type	Outer Shroud Contact
Fastening Type	Latch Lock
Features	Closed End
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	40
Number of Rows	1
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Wire Gauge [Max]	36 AWG, 46 AWG
Wire Gauge [Min]	40 AWG, 32 AWG
Wire Type	Discrete or Ribbon Cable

DF80 Series

Part	Number of Positions	Number of Rows	Features	Pitch [x]	Pitch [x]	Contact Type	Connector Type	Cable Termination	Mounting Type	Contact Finish	Fastening Type	Wire Gauge [Max]	Wire Gauge [Min]	Color	Wire Type	For Use With/Related Products	Accessory Type	Termination	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Contact Finish - Post	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Insulation Material	Voltage Rating	Insulation Height	Insulation Height	Style
Hirose Electric USA, Inc. DF80-30P-0.5SD(52)	30	1	Closed End	0.5 mm	0.02 in	Outer Shroud Contact	Plug	Solder	Free Hanging (In-Line) Right Angle	Gold	Latch Lock	36 AWG 46 AWG	32 AWG 40 AWG	Black	Discrete or Ribbon Cable
Hirose Electric USA, Inc. DF80-50P-SHL(52)	50															DF80 Series	Shell
Hirose Electric USA, Inc. DF80-50S-0.5V(51)	50	1	Solder Retention			Center Strip Contact	Receptacle		Surface Mount		Friction Lock							Solder	Phosphor Bronze	-35 °C	85 °C	0.05 µm	1.97 µin	Black	Gold	UL94 V-0	0.02 in	0.5 mm	0.5 A	All	1.97 Áin	0.05 Ám	Gold	Liquid Crystal Polymer (LCP) Halogen Free	50 V	1.65 mm	0.065 "	Board to Cable/Wire
Hirose Electric USA, Inc. DF80-50P-SHL	50															DF80 Series	Shield
Hirose Electric USA, Inc. DF80-40P-0.5SD(52)	40	1	Closed End	0.5 mm	0.02 in	Outer Shroud Contact	Plug	Solder	Free Hanging (In-Line) Right Angle	Gold	Latch Lock	36 AWG 46 AWG	32 AWG 40 AWG	Black	Discrete or Ribbon Cable

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

DF80 Series

40 Position Rectangular Plug Connector Solder Gold 32-36 AWG, 40-46 AWG
