DF80-50P-SHL(52)

Active

Hirose Electric USA, Inc.

CONN COVER FOR 50POS PLUG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDF80 Series Datasheet Datasheet

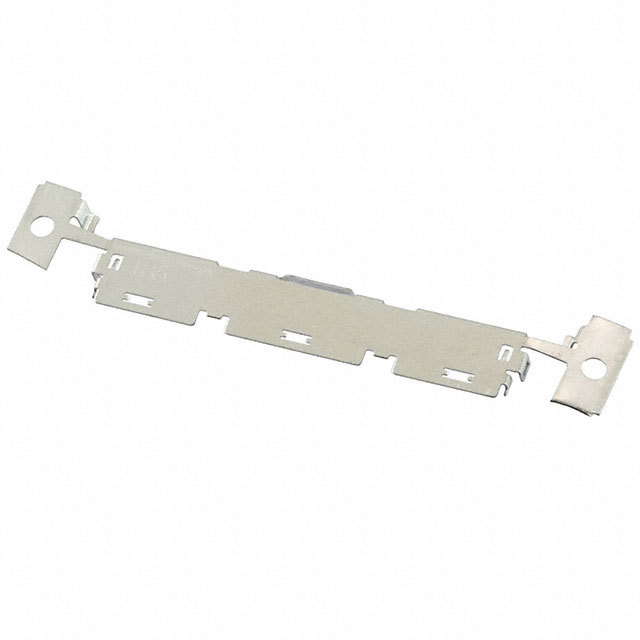

DF80-50P-SHL(52)

Active

Hirose Electric USA, Inc.

CONN COVER FOR 50POS PLUG

Deep-Dive with AI

DocumentsDF80 Series Datasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF80-50P-SHL(52)

Accessory Type	Shell
For Use With/Related Products	DF80 Series
Number of Positions	50

DF80 Series

Part	Number of Positions	Number of Rows	Features	Pitch [x]	Pitch [x]	Contact Type	Connector Type	Cable Termination	Mounting Type	Contact Finish	Fastening Type	Wire Gauge [Max]	Wire Gauge [Min]	Color	Wire Type	For Use With/Related Products	Accessory Type	Termination	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Contact Finish - Post	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Insulation Material	Voltage Rating	Insulation Height	Insulation Height	Style
Hirose Electric USA, Inc. DF80-30P-0.5SD(52)	30	1	Closed End	0.5 mm	0.02 in	Outer Shroud Contact	Plug	Solder	Free Hanging (In-Line) Right Angle	Gold	Latch Lock	36 AWG 46 AWG	32 AWG 40 AWG	Black	Discrete or Ribbon Cable
Hirose Electric USA, Inc. DF80-50P-SHL(52)	50															DF80 Series	Shell
Hirose Electric USA, Inc. DF80-50S-0.5V(51)	50	1	Solder Retention			Center Strip Contact	Receptacle		Surface Mount		Friction Lock							Solder	Phosphor Bronze	-35 °C	85 °C	0.05 µm	1.97 µin	Black	Gold	UL94 V-0	0.02 in	0.5 mm	0.5 A	All	1.97 Áin	0.05 Ám	Gold	Liquid Crystal Polymer (LCP) Halogen Free	50 V	1.65 mm	0.065 "	Board to Cable/Wire
Hirose Electric USA, Inc. DF80-50P-SHL	50															DF80 Series	Shield
Hirose Electric USA, Inc. DF80-40P-0.5SD(52)	40	1	Closed End	0.5 mm	0.02 in	Outer Shroud Contact	Plug	Solder	Free Hanging (In-Line) Right Angle	Gold	Latch Lock	36 AWG 46 AWG	32 AWG 40 AWG	Black	Discrete or Ribbon Cable

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.62
	Tape & Reel (TR)	1000	$ 0.92

Description

General part information

DF80 Series

Connector Shell For DF80 Series

Documents

Technical documentation and resources

DF80 Series Datasheet

Datasheet
