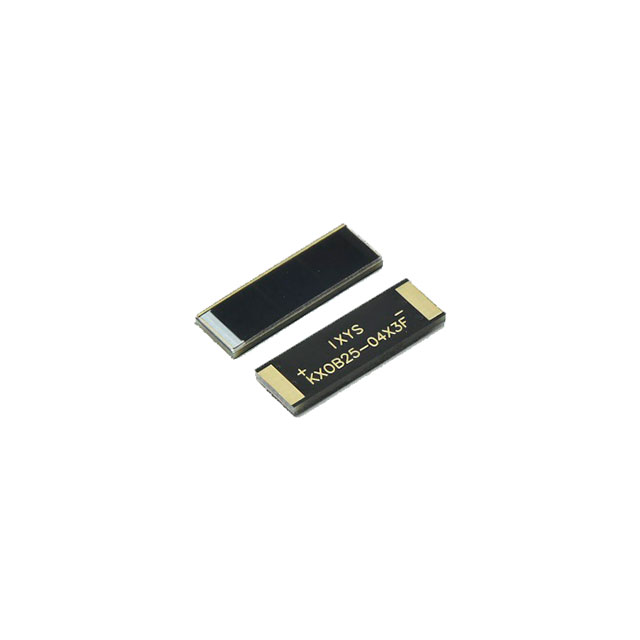

KXOB25-04X3F-TR
ActiveANYSOLAR Ltd
MONOCRYSTL SOLAR CELL 22MW 2.07V
Deep-Dive with AI
Search across all available documentation for this part.
KXOB25-04X3F-TR
ActiveANYSOLAR Ltd
MONOCRYSTL SOLAR CELL 22MW 2.07V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | KXOB25-04X3F-TR |
|---|---|
| Current - Short Circuit (Isc) | 14 mA |
| Current @ Pmpp | 13.2 mA |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Cells |
| Power (Watts) - Max [Max] | 22 mW |
| Type | Monocrystalline |
| Voltage - Open Circuit | 2.07 V |
| Voltage @ Pmpp [custom] | 1.67 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.14 | |
| 10 | $ 2.56 | |||
| 50 | $ 2.23 | |||
| 100 | $ 2.10 | |||
| 250 | $ 1.97 | |||
| Digi-Reel® | 1 | $ 3.14 | ||
| 10 | $ 2.56 | |||
| 50 | $ 2.23 | |||
| 100 | $ 2.10 | |||
| 250 | $ 1.97 | |||
| Tape & Reel (TR) | 2500 | $ 1.61 | ||
Description
General part information
KXOB25 Series
Monocrystalline Solar Cell 22 mW 2.07 V
Documents
Technical documentation and resources
No documents available
