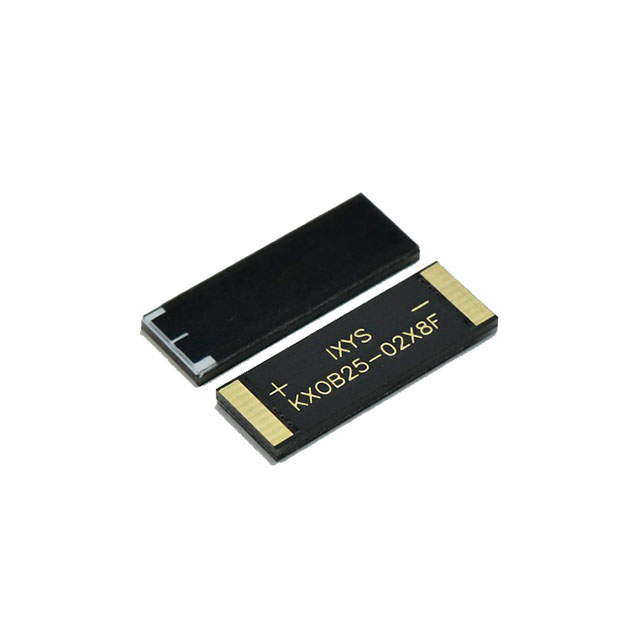

KXOB25-02X8F-TR
ActiveANYSOLAR Ltd
MONOCRYS SOLAR CELL 26.3MW 5.53V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KXOB25-02X8F-TR
ActiveANYSOLAR Ltd
MONOCRYS SOLAR CELL 26.3MW 5.53V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KXOB25-02X8F-TR |
|---|---|
| Current - Short Circuit (Isc) | 6.3 mA |
| Current @ Pmpp | 5.9 mA |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Cells |
| Power (Watts) - Max [Max] | 26.3 mW |
| Size / Dimension [x] | 23 mm |
| Size / Dimension [x] | 0.906 in |
| Size / Dimension [y] | 8 mm |
| Size / Dimension [y] | 0.315 in |
| Size / Dimension [z] | 1.8 mm |
| Size / Dimension [z] | 0.071 in |
| Type | Monocrystalline |
| Voltage - Open Circuit | 5.53 V |
| Voltage @ Pmpp [custom] | 4.46 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.29 | |
| 10 | $ 2.79 | |||
| 50 | $ 2.49 | |||
| 100 | $ 2.36 | |||
| 250 | $ 2.22 | |||
| 500 | $ 2.11 | |||
| Digi-Reel® | 1 | $ 3.29 | ||
| 10 | $ 2.79 | |||
| 50 | $ 2.49 | |||
| 100 | $ 2.36 | |||
| 250 | $ 2.22 | |||
| 500 | $ 2.11 | |||
| Tape & Reel (TR) | 2500 | $ 2.11 | ||
Description
General part information
KXOB25 Series
Monocrystalline Solar Cell 26.3 mW 5.53 V
Documents
Technical documentation and resources
