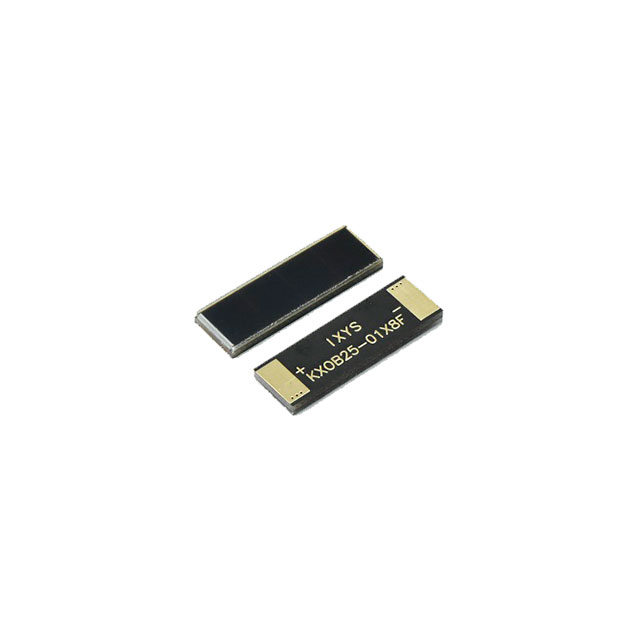

KXOB25-01X8F-TB

Active

ANYSOLAR Ltd

MONOCRYS SOLAR CELL 24.5MW 5.53V

Search across all available documentation for this part.

Active

ANYSOLAR Ltd

MONOCRYS SOLAR CELL 24.5MW 5.53V

Technical Specifications

Parameters and characteristics for this part

Part	Voltage @ Pmpp [custom]	Power (Watts) - Max [Max]	Current - Short Circuit (Isc)	Current @ Pmpp	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Type	Voltage - Open Circuit	Voltage @ Pmpp	Voltage @ Pmpp [custom]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]
ANYSOLAR Ltd KXOB25-04X3F-TR	1.67 V	22 mW	14 mA	13.2 mA	Cells	90 °C	-40 °C	Monocrystalline	2.07 V
ANYSOLAR Ltd KXOB25-12X1F-TR		24.5 mW	46.7 mA	43.9 mA	Cells	90 °C	-40 °C	Monocrystalline	690 mV	560 mV
ANYSOLAR Ltd KXOB25-01X8F-TB		24.5 mW	5.9 mA	5.5 mA	Cells	90 °C	-40 °C	Monocrystalline	5.53 V		4.46 V
ANYSOLAR Ltd KXOB25-02X8F-TR		26.3 mW	6.3 mA	5.9 mA	Cells	90 °C	-40 °C	Monocrystalline	5.53 V		4.46 V	1.8 mm	8 mm	0.071 in	23 mm	0.906 in	0.315 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Monocrystalline Solar Cell 24.5 mW 5.53 V
