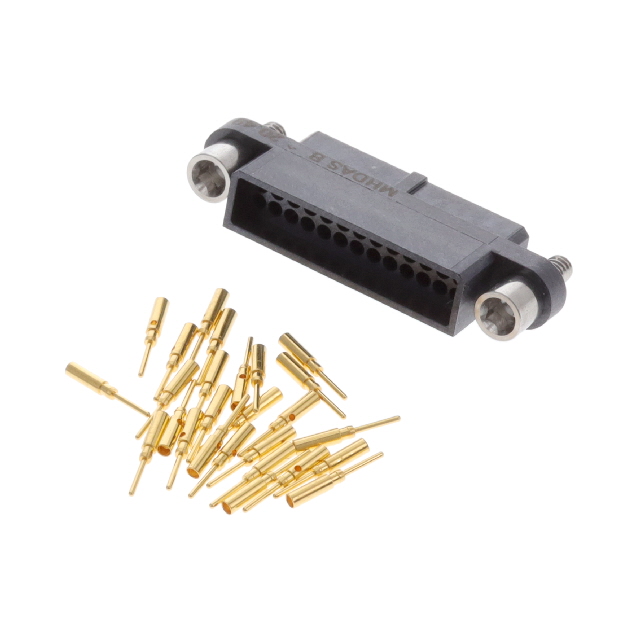

MHDAS2M026BE01
ActiveAmphenol Socapex
MICRO HDAS 26 MALE CRIMP CONTACT
Deep-Dive with AI
Search across all available documentation for this part.
MHDAS2M026BE01
ActiveAmphenol Socapex
MICRO HDAS 26 MALE CRIMP CONTACT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MHDAS2M026BE01 |
|---|---|
| Cable Termination | Crimp |
| Color | Black |
| Connector Type | Header |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.75 µm |
| Contact Finish Thickness | 29.5 µin |
| Contact Type | Male Pin |
| Features | Guide Pin, Polarizing Key |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 26 |
| Number of Rows | 2 |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
| Row Spacing | 1.27 mm |
| Row Spacing | 0.05 in |
| Wire Gauge | 26 AWG |
| Wire Type | Discrete |
MHDAS2M Series
| Part | Connector Type | Number of Positions | Wire Gauge | Wire Type | Mounting Type | Contact Finish | Cable Termination | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Row Spacing | Row Spacing | Color | Features | Pitch [x] | Pitch [x] | Number of Rows | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions Loaded | Material Flammability Rating | Voltage Rating | Contact Length - Mating | Contact Length - Mating | Style | Shrouding | Contact Shape | Contact Length - Post | Contact Length - Post | Contact Finish - Mating | Contact Material | Current Rating (Amps) | Contact Finish - Post | Insulation Height | Insulation Height | Insulation Color | Operating Temperature [Min] | Operating Temperature [Max] | Row Spacing - Mating | Row Spacing - Mating | Termination | Number of Positions | Wire Gauge [Max] | Wire Gauge [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Socapex | Header | 26 | 26 AWG | Discrete | Free Hanging (In-Line) | Gold | Crimp | 0.75 µm | 29.5 µin | Male Pin | 1.27 mm | 0.05 in | Black | Guide Pin Polarizing Key | 0.05 in | 1.27 mm | 2 | |||||||||||||||||||||||||||||
Amphenol Socapex | Header | 20 | Through Hole | Male Pin | Mating Flange Mounting Flange Polarizing Key | 2 | 0.05 in | 1.27 mm | 29.5 Áin | 0.75 Ám | All | UL94 V-0 | 750 VDC | 3.25 mm | 0.128 in | Board to Board Cable | Shrouded - 4 Wall | Circular | 0.118 in | 3 mm | Gold | Copper Alloy | 3 A | Gold | 0.207 in | 5.25 mm | Black | -65 ░C | 150 °C | 0.05 in | 1.27 mm | Solder | ||||||||||||||
Amphenol Socapex | Header | 8 | Through Hole | Male Pin | Mating Flange Mounting Flange Polarizing Key | 2 | 0.05 in | 1.27 mm | 29.5 Áin | 0.75 Ám | All | UL94 V-0 | 750 VDC | 3.25 mm | 0.128 in | Board to Board Cable | Shrouded - 4 Wall | Circular | 0.118 in | 3 mm | Gold | Copper Alloy | 3 A | Gold | 0.207 in | 5.25 mm | Black | -65 ░C | 150 °C | 0.05 in | 1.27 mm | Solder | ||||||||||||||
Amphenol Socapex | Header | Discrete | Free Hanging (In-Line) | Gold | Crimp | 0.75 µm | 29.5 µin | Male Pin | 1.27 mm | 0.05 in | Black | Guide Pin Polarizing Key | 0.05 in | 1.27 mm | 2 | 16 | 30 AWG | 27.5 AWG | ||||||||||||||||||||||||||||
Amphenol Socapex | Header | 30 | 24 AWG | Discrete | Free Hanging (In-Line) | Gold | Crimp | 0.75 µm | 29.5 µin | Male Pin | 1.27 mm | 0.05 in | Black | Guide Pin Polarizing Key | 0.05 in | 1.27 mm | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 127.18 | |
| 10 | $ 108.59 | |||
Description
General part information
MHDAS2M Series
26 Position Rectangular Header Connector Crimp Gold 26 AWG
