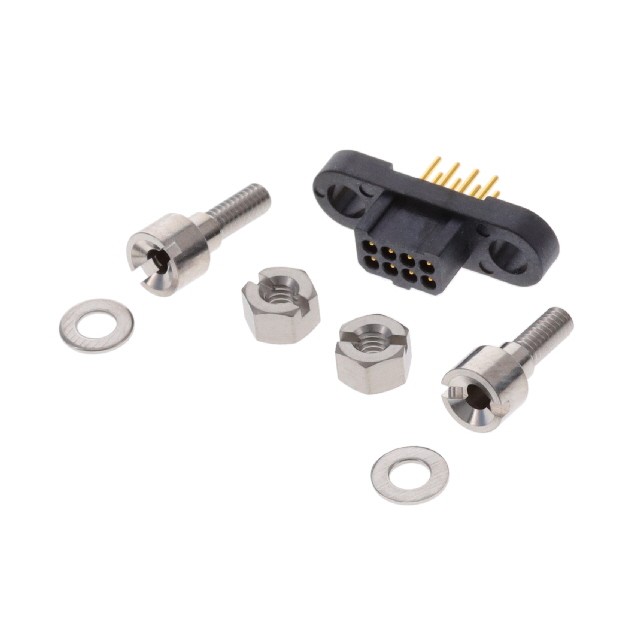

MHDAS2M008YDE60

Active

Amphenol Socapex

MICRO HDAS 8 MALE STRAIGHT PC TA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Order Micro HDAS Datasheet

MHDAS2M008YDE60

Active

Amphenol Socapex

MICRO HDAS 8 MALE STRAIGHT PC TA

Deep-Dive with AI

DocumentsHow to Order Micro HDAS Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MHDAS2M008YDE60

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám
Contact Length - Mating	3.25 mm
Contact Length - Mating	0.128 in
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	3 A
Features	Polarizing Key, Mounting Flange, Mating Flange
Insulation Color	Black
Insulation Height	0.207 in
Insulation Height	5.25 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	750 VDC

MHDAS2M Series

Part	Connector Type	Number of Positions	Wire Gauge	Wire Type	Mounting Type	Contact Finish	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Row Spacing	Row Spacing	Color	Features	Pitch [x]	Pitch [x]	Number of Rows	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Material Flammability Rating	Voltage Rating	Contact Length - Mating	Contact Length - Mating	Style	Shrouding	Contact Shape	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Contact Material	Current Rating (Amps)	Contact Finish - Post	Insulation Height	Insulation Height	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating	Row Spacing - Mating	Termination	Number of Positions	Wire Gauge [Max]	Wire Gauge [Min]
Amphenol Socapex MHDAS2M026BE01	Header	26	26 AWG	Discrete	Free Hanging (In-Line)	Gold	Crimp	0.75 µm	29.5 µin	Male Pin	1.27 mm	0.05 in	Black	Guide Pin Polarizing Key	0.05 in	1.27 mm	2
Amphenol Socapex MHDAS2M020YDE60	Header	20			Through Hole					Male Pin				Mating Flange Mounting Flange Polarizing Key			2	0.05 in	1.27 mm	29.5 Áin	0.75 Ám	All	UL94 V-0	750 VDC	3.25 mm	0.128 in	Board to Board Cable	Shrouded - 4 Wall	Circular	0.118 in	3 mm	Gold	Copper Alloy	3 A	Gold	0.207 in	5.25 mm	Black	-65 ░C	150 °C	0.05 in	1.27 mm	Solder
Amphenol Socapex MHDAS2M008YDE60	Header	8			Through Hole					Male Pin				Mating Flange Mounting Flange Polarizing Key			2	0.05 in	1.27 mm	29.5 Áin	0.75 Ám	All	UL94 V-0	750 VDC	3.25 mm	0.128 in	Board to Board Cable	Shrouded - 4 Wall	Circular	0.118 in	3 mm	Gold	Copper Alloy	3 A	Gold	0.207 in	5.25 mm	Black	-65 ░C	150 °C	0.05 in	1.27 mm	Solder
Amphenol Socapex MHDAS2M016GE01	Header			Discrete	Free Hanging (In-Line)	Gold	Crimp	0.75 µm	29.5 µin	Male Pin	1.27 mm	0.05 in	Black	Guide Pin Polarizing Key	0.05 in	1.27 mm	2																											16	30 AWG	27.5 AWG
Amphenol Socapex MHDAS2M030AE01	Header	30	24 AWG	Discrete	Free Hanging (In-Line)	Gold	Crimp	0.75 µm	29.5 µin	Male Pin	1.27 mm	0.05 in	Black	Guide Pin Polarizing Key	0.05 in	1.27 mm	2
