MHDAS2M016GE01

Active

Amphenol Socapex

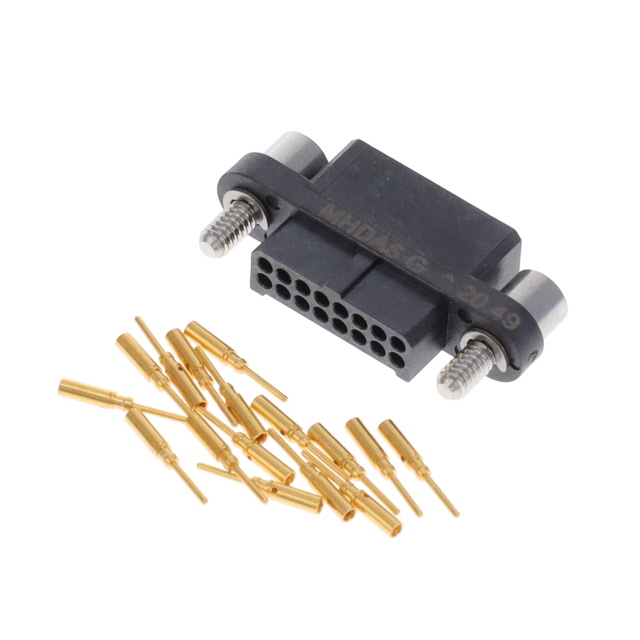

MICRO HDAS 16 MALE CRIMP CONTACT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Order Micro HDAS Datasheet

MHDAS2M016GE01

Active

Amphenol Socapex

MICRO HDAS 16 MALE CRIMP CONTACT

Deep-Dive with AI

DocumentsHow to Order Micro HDAS Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MHDAS2M016GE01

Cable Termination	Crimp
Color	Black
Connector Type	Header
Contact Finish	Gold
Contact Finish Thickness	0.75 µm
Contact Finish Thickness	29.5 µin
Contact Type	Male Pin
Features	Guide Pin, Polarizing Key
Mounting Type	Free Hanging (In-Line)
Number of Positions	16
Number of Rows	2
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Row Spacing	1.27 mm
Row Spacing	0.05 in
Wire Gauge [Max]	30 AWG
Wire Gauge [Min]	27.5 AWG
Wire Type	Discrete

MHDAS2M Series

Part	Connector Type	Number of Positions	Wire Gauge	Wire Type	Mounting Type	Contact Finish	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Row Spacing	Row Spacing	Color	Features	Pitch [x]	Pitch [x]	Number of Rows	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Material Flammability Rating	Voltage Rating	Contact Length - Mating	Contact Length - Mating	Style	Shrouding	Contact Shape	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Contact Material	Current Rating (Amps)	Contact Finish - Post	Insulation Height	Insulation Height	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating	Row Spacing - Mating	Termination	Number of Positions	Wire Gauge [Max]	Wire Gauge [Min]
Amphenol Socapex MHDAS2M026BE01	Header	26	26 AWG	Discrete	Free Hanging (In-Line)	Gold	Crimp	0.75 µm	29.5 µin	Male Pin	1.27 mm	0.05 in	Black	Guide Pin Polarizing Key	0.05 in	1.27 mm	2
Amphenol Socapex MHDAS2M020YDE60	Header	20			Through Hole					Male Pin				Mating Flange Mounting Flange Polarizing Key			2	0.05 in	1.27 mm	29.5 Áin	0.75 Ám	All	UL94 V-0	750 VDC	3.25 mm	0.128 in	Board to Board Cable	Shrouded - 4 Wall	Circular	0.118 in	3 mm	Gold	Copper Alloy	3 A	Gold	0.207 in	5.25 mm	Black	-65 ░C	150 °C	0.05 in	1.27 mm	Solder
Amphenol Socapex MHDAS2M008YDE60	Header	8			Through Hole					Male Pin				Mating Flange Mounting Flange Polarizing Key			2	0.05 in	1.27 mm	29.5 Áin	0.75 Ám	All	UL94 V-0	750 VDC	3.25 mm	0.128 in	Board to Board Cable	Shrouded - 4 Wall	Circular	0.118 in	3 mm	Gold	Copper Alloy	3 A	Gold	0.207 in	5.25 mm	Black	-65 ░C	150 °C	0.05 in	1.27 mm	Solder
Amphenol Socapex MHDAS2M016GE01	Header			Discrete	Free Hanging (In-Line)	Gold	Crimp	0.75 µm	29.5 µin	Male Pin	1.27 mm	0.05 in	Black	Guide Pin Polarizing Key	0.05 in	1.27 mm	2																											16	30 AWG	27.5 AWG
Amphenol Socapex MHDAS2M030AE01	Header	30	24 AWG	Discrete	Free Hanging (In-Line)	Gold	Crimp	0.75 µm	29.5 µin	Male Pin	1.27 mm	0.05 in	Black	Guide Pin Polarizing Key	0.05 in	1.27 mm	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 102.62
		10	$ 87.23
		30	$ 85.87
