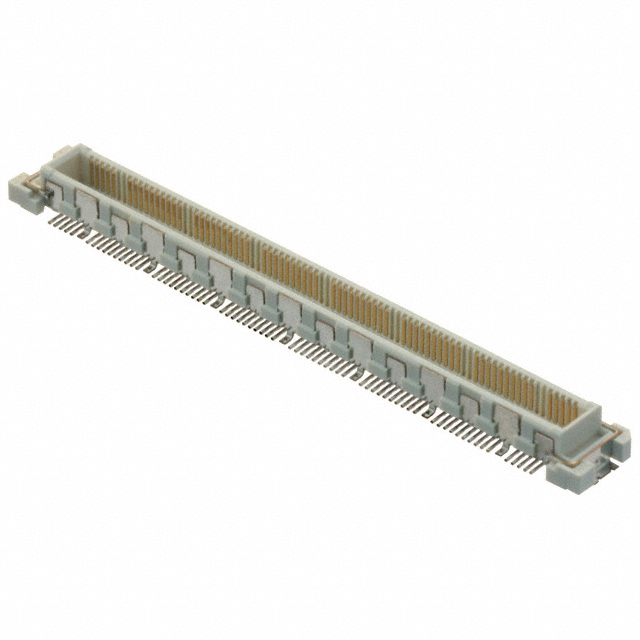

FX10A-140P/14-SV1(71)

Active

Hirose Electric USA, Inc.

CONN HDR 140POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFX10A-140P/14-SV1(71) Spec Datasheet

FX10A-140P/14-SV1(71)

Active

Hirose Electric USA, Inc.

CONN HDR 140POS SMD GOLD

Deep-Dive with AI

DocumentsFX10A-140P/14-SV1(71) Spec Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FX10A-140P/14-SV1(71)

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Board Guide, Solder Retention, Ground Plate
Height Above Board	0.177 in
Height Above Board	4.5 mm
Mated Stacking Heights	5 mm
Mounting Type	Surface Mount
Number of Positions	140
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

FX10A Series

Part	Number of Rows	Number of Positions	Height Above Board	Height Above Board	Features	Contact Finish	Connector Type	Mated Stacking Heights	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Height Above Board [z]	Height Above Board [z]
Hirose Electric USA, Inc. FX10A-96P-SV1(71)	2	96	0.177 in	4.5 mm	Board Guide Solder Retention	Gold	Header Outer Shroud Contacts	5 mm	0.5 mm	0.02 in	4 Áin	0.1 Ám	Surface Mount
Hirose Electric USA, Inc. FX10A-168S-SV(84)	2	168			Board Guide Solder Retention	Gold	Center Strip Contacts Receptacle	4 mm 5 mm	0.5 mm	0.02 in			Surface Mount	3.2 mm	0.126 in
Hirose Electric USA, Inc. FX10A-168S-SV(85)	2	168			Board Guide Solder Retention	Gold	Center Strip Contacts Receptacle	4 mm 5 mm 6 mm 7 mm 8 mm	0.5 mm	0.02 in	30 Áin	0.76 Ám	Surface Mount	3.2 mm	0.126 in
Hirose Electric USA, Inc. FX10A-140S/14-SV(71)	2	140			Board Guide Ground Plate Solder Retention	Gold	Center Strip Contacts Receptacle	4 mm 5 mm	0.5 mm	0.02 in	4 Áin	0.1 Ám	Surface Mount	3.2 mm	0.126 in
Hirose Electric USA, Inc. FX10A-100P/10-SV	2	100			Board Guide Ground Plate Solder Retention	Gold	Header Outer Shroud Contacts	4 mm	0.5 mm	0.02 in	4 Áin	0.1 Ám	Surface Mount
Hirose Electric USA, Inc. FX10A-168P-SV1(83)	2	168	0.177 in	4.5 mm	Board Guide Solder Retention	Gold	Header Outer Shroud Contacts	5 mm	0.5 mm	0.02 in	30 Áin	0.76 Ám	Surface Mount
Hirose Electric USA, Inc. FX10A-140P/14-SV1(71)	2	140	0.177 in	4.5 mm	Board Guide Ground Plate Solder Retention	Gold	Header Outer Shroud Contacts	5 mm	0.5 mm	0.02 in	4 Áin	0.1 Ám	Surface Mount
Hirose Electric USA, Inc. FX10A-80S/8-SV(21)	2	80			Board Guide Ground Plate Solder Retention	Gold	Center Strip Contacts Receptacle	4 mm 5 mm	0.5 mm	0.02 in	4 Áin	0.1 Ám	Surface Mount	3.2 mm	0.126 in
Hirose Electric USA, Inc. FX10A-120P/12-SV	2	120			Board Guide Ground Plate Solder Retention	Gold	Header Outer Shroud Contacts	4 mm	0.5 mm	0.02 in	4 Áin	0.1 Ám	Surface Mount
Hirose Electric USA, Inc. FX10A-144P-SV(85)	2	144			Board Guide Solder Retention	Gold	Header Outer Shroud Contacts	4 mm	0.5 mm	0.02 in	30 Áin	0.76 Ám	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 7.27
		10	$ 6.58
		25	$ 6.21
		50	$ 6.06
		100	$ 5.76
		250	$ 5.15
		450	$ 4.85
		950	$ 4.24
		2400	$ 4.03

Description

General part information

FX10A Series

140 Position Connector Header, Outer Shroud Contacts Surface Mount Gold

Documents

Technical documentation and resources

FX10A-140P/14-SV1(71) Spec

Datasheet
