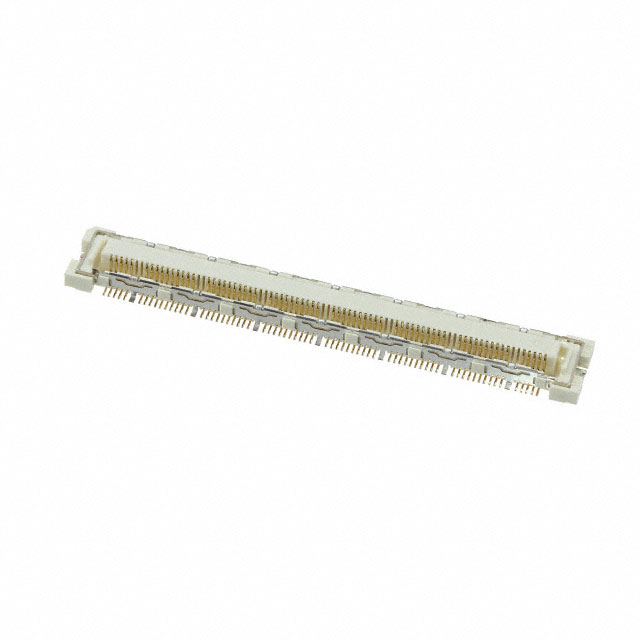

FX10A-140S/14-SV(71)

Active

Hirose Electric USA, Inc.

BOARD STACKING CONNECTOR, 154 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, SURFACE MOUNT TERMINAL, RECEPTACLE, ROHS COMPLIANT

Deep-Dive with AI

DocumentsDatasheet FX10 Series Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FX10A-140S/14-SV(71)

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Board Guide, Solder Retention, Ground Plate
Height Above Board [z]	3.2 mm
Height Above Board [z]	0.126 in
Mated Stacking Heights	4 mm, 5 mm
Mounting Type	Surface Mount
Number of Positions	140
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

FX10A Series

Part	Number of Rows	Number of Positions	Height Above Board	Height Above Board	Features	Contact Finish	Connector Type	Mated Stacking Heights	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Height Above Board [z]	Height Above Board [z]
Hirose Electric USA, Inc. FX10A-96P-SV1(71)	2	96	0.177 in	4.5 mm	Board Guide Solder Retention	Gold	Header Outer Shroud Contacts	5 mm	0.5 mm	0.02 in	4 Áin	0.1 Ám	Surface Mount
Hirose Electric USA, Inc. FX10A-168S-SV(84)	2	168			Board Guide Solder Retention	Gold	Center Strip Contacts Receptacle	4 mm 5 mm	0.5 mm	0.02 in			Surface Mount	3.2 mm	0.126 in
Hirose Electric USA, Inc. FX10A-168S-SV(85)	2	168			Board Guide Solder Retention	Gold	Center Strip Contacts Receptacle	4 mm 5 mm 6 mm 7 mm 8 mm	0.5 mm	0.02 in	30 Áin	0.76 Ám	Surface Mount	3.2 mm	0.126 in
Hirose Electric USA, Inc. FX10A-140S/14-SV(71)	2	140			Board Guide Ground Plate Solder Retention	Gold	Center Strip Contacts Receptacle	4 mm 5 mm	0.5 mm	0.02 in	4 Áin	0.1 Ám	Surface Mount	3.2 mm	0.126 in
Hirose Electric USA, Inc. FX10A-100P/10-SV	2	100			Board Guide Ground Plate Solder Retention	Gold	Header Outer Shroud Contacts	4 mm	0.5 mm	0.02 in	4 Áin	0.1 Ám	Surface Mount
Hirose Electric USA, Inc. FX10A-168P-SV1(83)	2	168	0.177 in	4.5 mm	Board Guide Solder Retention	Gold	Header Outer Shroud Contacts	5 mm	0.5 mm	0.02 in	30 Áin	0.76 Ám	Surface Mount
Hirose Electric USA, Inc. FX10A-140P/14-SV1(71)	2	140	0.177 in	4.5 mm	Board Guide Ground Plate Solder Retention	Gold	Header Outer Shroud Contacts	5 mm	0.5 mm	0.02 in	4 Áin	0.1 Ám	Surface Mount
Hirose Electric USA, Inc. FX10A-80S/8-SV(21)	2	80			Board Guide Ground Plate Solder Retention	Gold	Center Strip Contacts Receptacle	4 mm 5 mm	0.5 mm	0.02 in	4 Áin	0.1 Ám	Surface Mount	3.2 mm	0.126 in
Hirose Electric USA, Inc. FX10A-120P/12-SV	2	120			Board Guide Ground Plate Solder Retention	Gold	Header Outer Shroud Contacts	4 mm	0.5 mm	0.02 in	4 Áin	0.1 Ám	Surface Mount
Hirose Electric USA, Inc. FX10A-144P-SV(85)	2	144			Board Guide Solder Retention	Gold	Header Outer Shroud Contacts	4 mm	0.5 mm	0.02 in	30 Áin	0.76 Ám	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 8.88
		10	$ 6.81
		25	$ 6.15
		40	$ 5.84
		80	$ 5.42
		230	$ 4.85
		440	$ 4.55
		945	$ 4.22
		2400	$ 3.91

Description

General part information

FX10A Series

140 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
