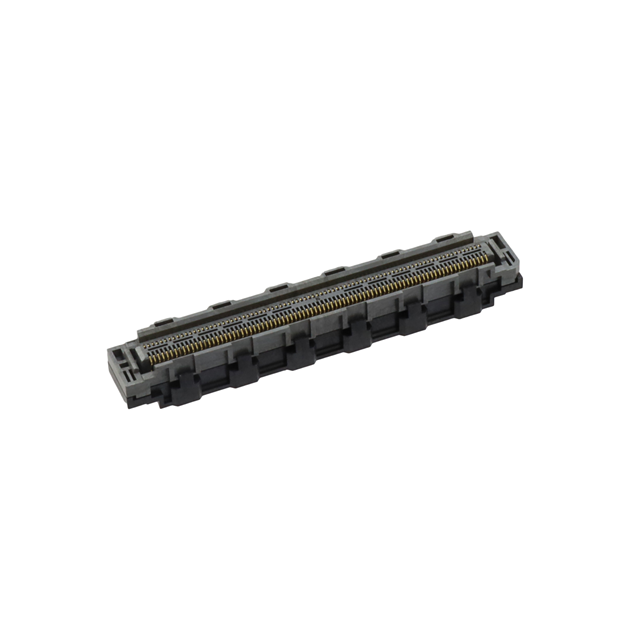

FX10A-168P-SV1(83)

Active

Hirose Electric USA, Inc.

CONN HDR 168POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet FX10 Series Datasheet

FX10A-168P-SV1(83)

Active

Hirose Electric USA, Inc.

CONN HDR 168POS SMD GOLD

Deep-Dive with AI

DocumentsDatasheet FX10 Series Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FX10A-168P-SV1(83)

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Solder Retention, Board Guide
Height Above Board	0.177 in
Height Above Board	4.5 mm
Mated Stacking Heights	5 mm
Mounting Type	Surface Mount
Number of Positions	168
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

FX10A Series

Part	Number of Rows	Number of Positions	Height Above Board	Height Above Board	Features	Contact Finish	Connector Type	Mated Stacking Heights	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Height Above Board [z]	Height Above Board [z]
Hirose Electric USA, Inc. FX10A-96P-SV1(71)	2	96	0.177 in	4.5 mm	Board Guide Solder Retention	Gold	Header Outer Shroud Contacts	5 mm	0.5 mm	0.02 in	4 Áin	0.1 Ám	Surface Mount
Hirose Electric USA, Inc. FX10A-168S-SV(84)	2	168			Board Guide Solder Retention	Gold	Center Strip Contacts Receptacle	4 mm 5 mm	0.5 mm	0.02 in			Surface Mount	3.2 mm	0.126 in
Hirose Electric USA, Inc. FX10A-168S-SV(85)	2	168			Board Guide Solder Retention	Gold	Center Strip Contacts Receptacle	4 mm 5 mm 6 mm 7 mm 8 mm	0.5 mm	0.02 in	30 Áin	0.76 Ám	Surface Mount	3.2 mm	0.126 in
Hirose Electric USA, Inc. FX10A-140S/14-SV(71)	2	140			Board Guide Ground Plate Solder Retention	Gold	Center Strip Contacts Receptacle	4 mm 5 mm	0.5 mm	0.02 in	4 Áin	0.1 Ám	Surface Mount	3.2 mm	0.126 in
Hirose Electric USA, Inc. FX10A-100P/10-SV	2	100			Board Guide Ground Plate Solder Retention	Gold	Header Outer Shroud Contacts	4 mm	0.5 mm	0.02 in	4 Áin	0.1 Ám	Surface Mount
Hirose Electric USA, Inc. FX10A-168P-SV1(83)	2	168	0.177 in	4.5 mm	Board Guide Solder Retention	Gold	Header Outer Shroud Contacts	5 mm	0.5 mm	0.02 in	30 Áin	0.76 Ám	Surface Mount
Hirose Electric USA, Inc. FX10A-140P/14-SV1(71)	2	140	0.177 in	4.5 mm	Board Guide Ground Plate Solder Retention	Gold	Header Outer Shroud Contacts	5 mm	0.5 mm	0.02 in	4 Áin	0.1 Ám	Surface Mount
Hirose Electric USA, Inc. FX10A-80S/8-SV(21)	2	80			Board Guide Ground Plate Solder Retention	Gold	Center Strip Contacts Receptacle	4 mm 5 mm	0.5 mm	0.02 in	4 Áin	0.1 Ám	Surface Mount	3.2 mm	0.126 in
Hirose Electric USA, Inc. FX10A-120P/12-SV	2	120			Board Guide Ground Plate Solder Retention	Gold	Header Outer Shroud Contacts	4 mm	0.5 mm	0.02 in	4 Áin	0.1 Ám	Surface Mount
Hirose Electric USA, Inc. FX10A-144P-SV(85)	2	144			Board Guide Solder Retention	Gold	Header Outer Shroud Contacts	4 mm	0.5 mm	0.02 in	30 Áin	0.76 Ám	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 19.56
		10	$ 16.95
		25	$ 16.06
		50	$ 15.83
		100	$ 13.97
		250	$ 13.04
		500	$ 12.76
	Tape & Reel (TR)	1000	$ 11.11

Description

General part information

FX10A Series

168 Position Connector Header, Outer Shroud Contacts Surface Mount Gold

Documents

Technical documentation and resources

Datasheet

FX10 Series Datasheet

Datasheet
