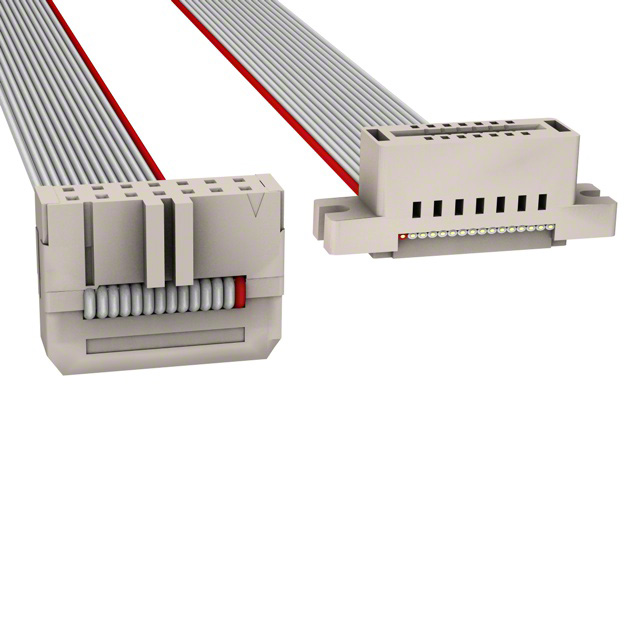

M3UGK-1606J

Active

3M (TC)

IDC CABLE - MKS16K/MC16G/MCS16K

Deep-Dive with AI

DocumentsDatasheet Ribbon Cable Assembly Length Guide +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M3UGK-1606J

Cable Termination	IDC
Connector Type	Socket to Card Edge
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Polarizing Key, Flange (Card Edge), Strain Relief (Socket)
Length	152.4 mm
Length	6 "
Length	0.5 '
Number of Positions	16
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

M3UGK Series

Part	Color	Contact Finish	Pitch - Cable	Pitch - Cable	Shielding	Pitch - Connector	Pitch - Connector	Length	Length	Length	Features	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Cable Termination	Connector Type	Number of Rows	Number of Positions	Length	Length [x]	Length [x]
3M (TC) M3UGK-5006R	Multiple Ribbon	Gold	0.05 "	1.27 mm	Unshielded	0.1 in	2.54 mm	152.4 mm	6 "	0.5 '	Flange (Card Edge) Polarizing Key Strain Relief (Socket)	50	0.76 Ám	30 Áin	IDC	Socket to Card Edge	2
3M (TC) M3UGK-1006J		Gold	0.05 "	1.27 mm	Unshielded	0.1 in	2.54 mm	152.4 mm	6 "	0.5 '	Flange (Card Edge) Polarizing Key Strain Relief (Socket)	10	0.76 Ám	30 Áin	IDC	Socket to Card Edge	2
3M (TC) M3UGK-3406R	Multiple Ribbon	Gold	0.05 "	1.27 mm	Unshielded	0.1 in	2.54 mm	152.4 mm	6 "	0.5 '	Flange (Card Edge) Polarizing Key Strain Relief (Socket)	34	0.76 Ám	30 Áin	IDC	Socket to Card Edge	2
3M (TC) M3UGK-4006J		Gold	0.05 "	1.27 mm	Unshielded	0.1 in	2.54 mm	152.4 mm	6 "	0.5 '	Flange (Card Edge) Polarizing Key Strain Relief (Socket)	40	0.76 Ám	30 Áin	IDC	Socket to Card Edge	2
3M (TC) M3UGK-1606J		Gold	0.05 "	1.27 mm	Unshielded	0.1 in	2.54 mm	152.4 mm	6 "	0.5 '	Flange (Card Edge) Polarizing Key Strain Relief (Socket)		0.76 Ám	30 Áin	IDC	Socket to Card Edge	2	16
3M (TC) M3UGK-1660K	Multiple Twisted Pair (Flat)	Gold	0.05 "	1.27 mm	Unshielded	0.1 in	2.54 mm	1.52 m			Flange (Card Edge) Polarizing Key Strain Relief (Socket)		0.76 Ám	30 Áin	IDC	Socket to Card Edge	2	16	5 '
3M (TC) M3UGK-4040K	Multiple Twisted Pair (Flat)	Gold	0.05 "	1.27 mm	Unshielded	0.1 in	2.54 mm				Flange (Card Edge) Polarizing Key Strain Relief (Socket)	40	0.76 Ám	30 Áin	IDC	Socket to Card Edge	2			1.02 m	3.34 ft
3M (TC) M3UGK-1618R	Multiple Ribbon	Gold	0.05 "	1.27 mm	Unshielded	0.1 in	2.54 mm				Flange (Card Edge) Polarizing Key Strain Relief (Socket)		0.76 Ám	30 Áin	IDC	Socket to Card Edge	2	16		457.2 mm	1.5 ft
3M (TC) M3UGK-4036J		Gold	0.05 "	1.27 mm	Unshielded	0.1 in	2.54 mm				Flange (Card Edge) Polarizing Key Strain Relief (Socket)	40	0.76 Ám	30 Áin	IDC	Socket to Card Edge	2			914.4 mm	3 ft
3M (TC) M3UGK-3418J		Gold	0.05 "	1.27 mm	Unshielded	0.1 in	2.54 mm				Flange (Card Edge) Polarizing Key Strain Relief (Socket)	34	0.76 Ám	30 Áin	IDC	Socket to Card Edge	2			457.2 mm	1.5 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.43
		10	$ 12.79
		25	$ 12.30
		50	$ 11.81
		100	$ 11.15
		250	$ 10.17
		500	$ 9.51
		1000	$ 8.73

Description

General part information

M3UGK Series

16 Position Cable Assembly Rectangular Socket to Card Edge 0.500' (152.40mm, 6.00")
