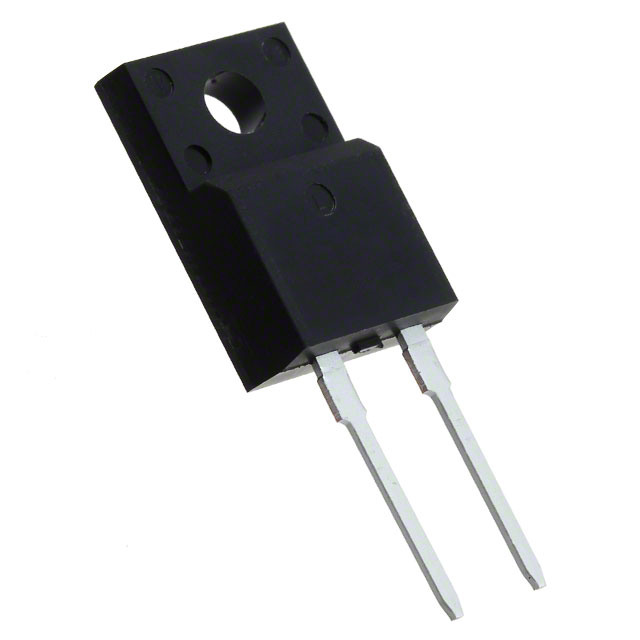

SCS210AMC

LTB

Rohm Semiconductor

DIODE SIL CARB 650V 10A TO220FM

Search across all available documentation for this part.

LTB

Rohm Semiconductor

DIODE SIL CARB 650V 10A TO220FM

Technical Specifications

Parameters and characteristics for this part

Specification	SCS210AMC

Capacitance @ Vr, F	365 pF
Current - Average Rectified (Io)	10 A
Current - Reverse Leakage @ Vr	200 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	175 °C
Package / Case	TO-220-2
Reverse Recovery Time (trr)	0 ns
Speed	No Recovery Time
Supplier Device Package	TO-220FM
Technology	SiC (Silicon Carbide) Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	650 V
Voltage - Forward (Vf) (Max) @ If	1.55 V

1200V, 10A, 3-pin THD, Silicon-carbide (SiC) SBD for Automotive

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Speed	Package / Case	Operating Temperature - Junction	Current - Average Rectified (Io) (per Diode)	Supplier Device Package	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Diode Configuration	Reverse Recovery Time (trr)	Technology	Mounting Type	Current - Average Rectified (Io)	Capacitance @ Vr, F	Operating Temperature - Junction [Max]
Rohm Semiconductor SCS210KE2HRC11	1.2 kV	No Recovery Time	TO-247-3	175 °C	5 A	TO-247	1.6 V	100 µA	1 Pair Common Cathode	0 ns	SiC (Silicon Carbide) Schottky	Through Hole
Rohm Semiconductor SCS210AMC	650 V	No Recovery Time	TO-220-2			TO-220FM	1.55 V	200 µA		0 ns	SiC (Silicon Carbide) Schottky	Through Hole	10 A	365 pF	175 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 6.50

General part information

Switching loss reduced, enabling high-speed switching . (3-pin package)
