0190700071

Active

Molex

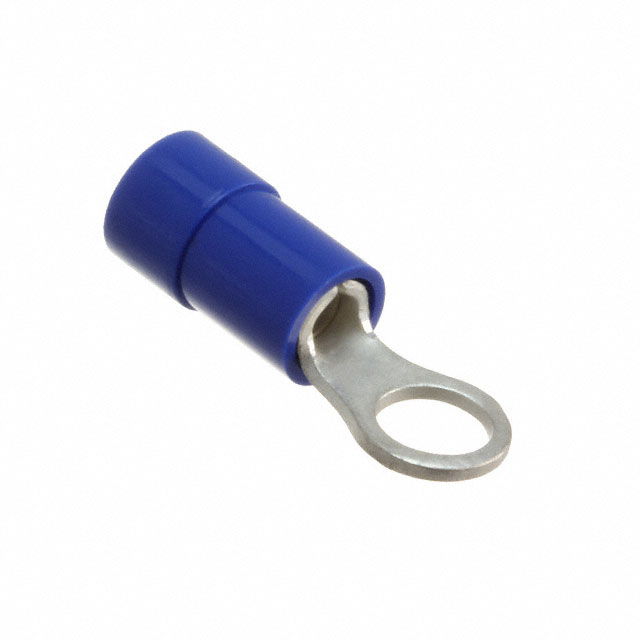

CONN RING CIRC 14-16AWG #8 CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

Documents0190440069 Drawing/Datasheet Datasheet

0190700071

Active

Molex

CONN RING CIRC 14-16AWG #8 CRIMP

Deep-Dive with AI

Documents0190440069 Drawing/Datasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0190700071

Color	Blue
Contact Finish	Electro-Tin
Contact Material	Copper
Features	Serrated Termination
Insulation	Insulated
Insulation Diameter [diameter]	0.175 in
Insulation Diameter [diameter]	4.45 mm
Length - Overall [x]	19.94 mm
Length - Overall [x]	0.785 in
Material - Insulation	Poly-Vinyl Chloride (PVC)
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	8 Stud
Terminal Type	Circular
Termination	Crimp
Thickness	0.031 in
Thickness	0.79 mm
Width - Outer Edges [y]	6.6 mm
Width - Outer Edges [y]	0.26 in

019070 Series

...

Part	Wire Gauge [Max]	Wire Gauge [Min]	Width - Outer Edges	Width - Outer Edges [x]	Stud/Tab Size	Material - Insulation	Termination	Length - Overall [x]	Length - Overall [x]	Contact Material	Insulation Diameter	Insulation Diameter [diameter]	Color	Contact Finish	Thickness	Thickness	Features	Insulation	Mounting Type	Terminal Type	Length [x]	Length [x]	Contact End	Wire Gauge	Number of Conductors	Number of Rows	Contact End [custom]	Contact End [custom]	Length	Length	Length - Overall [x]	Insulation Diameter [diameter]	Width - Outer Edges [y]	Width - Outer Edges [y]	Stud/Tab Size
Molex 0190700008	22 AWG	17.5 AWG	5.96 mm	0.235 in	4 Stud	Poly-Vinyl Chloride (PVC)	Crimp	0.709 "	18 mm	Copper	3.68 mm	0.145 "	Red	Electro-Tin	0.71 mm	0.028 in	Serrated Termination	Insulated	Free Hanging (In-Line)	Circular
Molex 0190700014-24-B9													Black	Tin							609.6 mm	24 in	Ring Terminal (#8 stud) to Cable	18 AWG	1	1
Molex 0190700014-06-N9-D													Brown	Tin										18 AWG	1	1	Ring Terminal (#8 stud)	Ring Terminal (#8 stud)	152.4 mm	6 in
Molex 0190700014-10-A9														Tin								10 in	Ring Terminal (#8 stud) to Cable	18 AWG	1	1			254 mm
Molex 0190700014-04-V9													Violet	Tin							101.6 mm	4 "	Ring Terminal (#8 stud) to Cable	18 AWG	1	1
Molex 0190700069					6 Stud	Poly-Vinyl Chloride (PVC)	Crimp		0.785 in	Copper		0.175 in	Blue	Tin			Serrated Termination	Insulated	Free Hanging (In-Line)	Circular											19.94 mm	4.45 mm	6.6 mm	0.26 in
Molex 0190700071						Poly-Vinyl Chloride (PVC)	Crimp		0.785 in	Copper		0.175 in	Blue	Electro-Tin	0.79 mm	0.031 in	Serrated Termination	Insulated	Free Hanging (In-Line)	Circular											19.94 mm	4.45 mm	6.6 mm	0.26 in	8 Stud
Molex 0190700014-12-R9													Red	Tin								12 in	Ring Terminal (#8 stud) to Cable	18 AWG	1	1			304.8 mm
Molex 0190700014-05-B9-D													Black	Tin							127 mm	5 in		18 AWG	1	1	Ring Terminal (#8 stud)	Ring Terminal (#8 stud)
Molex 0190700289	22 AWG	17.5 AWG			10 Stud	Poly-Vinyl Chloride (PVC)	Crimp	0.866 "	22 mm	Copper	3.68 mm	0.145 "	Red	Electro-Tin	0.71 mm	0.028 in		Insulated	Free Hanging (In-Line)	Circular													8.18 mm	0.322 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.33
		10	$ 0.27
		100	$ 0.20
		1000	$ 0.16
		3000	$ 0.14

Description

General part information

019070 Series

Ring Terminal Connector 8 Stud Circular 14-16 AWG Crimp

Documents

Technical documentation and resources

0190440069 Drawing/Datasheet

Datasheet
