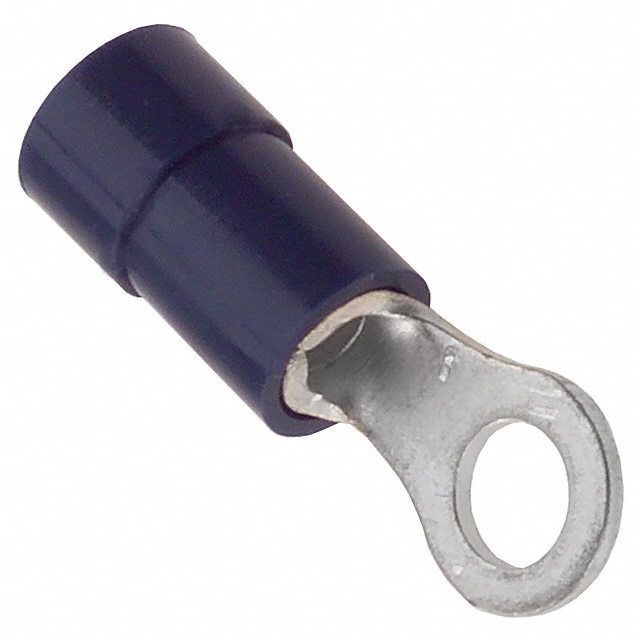

0190700069
ActiveMolex
CONN RING CIRC 14-16AWG #6 CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
0190700069
ActiveMolex
CONN RING CIRC 14-16AWG #6 CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0190700069 |
|---|---|
| Color | Blue |
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | Serrated Termination |
| Insulation | Insulated |
| Insulation Diameter [diameter] | 0.175 in |
| Insulation Diameter [diameter] | 4.45 mm |
| Length - Overall [x] | 19.94 mm |
| Length - Overall [x] | 0.785 in |
| Material - Insulation | Poly-Vinyl Chloride (PVC) |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 6 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Width - Outer Edges [y] | 6.6 mm |
| Width - Outer Edges [y] | 0.26 in |
019070 Series
...
| Part | Wire Gauge [Max] | Wire Gauge [Min] | Width - Outer Edges | Width - Outer Edges [x] | Stud/Tab Size | Material - Insulation | Termination | Length - Overall [x] | Length - Overall [x] | Contact Material | Insulation Diameter | Insulation Diameter [diameter] | Color | Contact Finish | Thickness | Thickness | Features | Insulation | Mounting Type | Terminal Type | Length [x] | Length [x] | Contact End | Wire Gauge | Number of Conductors | Number of Rows | Contact End [custom] | Contact End [custom] | Length | Length | Length - Overall [x] | Insulation Diameter [diameter] | Width - Outer Edges [y] | Width - Outer Edges [y] | Stud/Tab Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | 22 AWG | 17.5 AWG | 5.96 mm | 0.235 in | 4 Stud | Poly-Vinyl Chloride (PVC) | Crimp | 0.709 " | 18 mm | Copper | 3.68 mm | 0.145 " | Red | Electro-Tin | 0.71 mm | 0.028 in | Serrated Termination | Insulated | Free Hanging (In-Line) | Circular | |||||||||||||||
Molex | Black | Tin | 609.6 mm | 24 in | Ring Terminal (#8 stud) to Cable | 18 AWG | 1 | 1 | |||||||||||||||||||||||||||
Molex | Brown | Tin | 18 AWG | 1 | 1 | Ring Terminal (#8 stud) | Ring Terminal (#8 stud) | 152.4 mm | 6 in | ||||||||||||||||||||||||||
Molex | Tin | 10 in | Ring Terminal (#8 stud) to Cable | 18 AWG | 1 | 1 | 254 mm | ||||||||||||||||||||||||||||
Molex | Violet | Tin | 101.6 mm | 4 " | Ring Terminal (#8 stud) to Cable | 18 AWG | 1 | 1 | |||||||||||||||||||||||||||
Molex | 6 Stud | Poly-Vinyl Chloride (PVC) | Crimp | 0.785 in | Copper | 0.175 in | Blue | Tin | Serrated Termination | Insulated | Free Hanging (In-Line) | Circular | 19.94 mm | 4.45 mm | 6.6 mm | 0.26 in | |||||||||||||||||||
Molex | Poly-Vinyl Chloride (PVC) | Crimp | 0.785 in | Copper | 0.175 in | Blue | Electro-Tin | 0.79 mm | 0.031 in | Serrated Termination | Insulated | Free Hanging (In-Line) | Circular | 19.94 mm | 4.45 mm | 6.6 mm | 0.26 in | 8 Stud | |||||||||||||||||
Molex | Red | Tin | 12 in | Ring Terminal (#8 stud) to Cable | 18 AWG | 1 | 1 | 304.8 mm | |||||||||||||||||||||||||||
Molex | Black | Tin | 127 mm | 5 in | 18 AWG | 1 | 1 | Ring Terminal (#8 stud) | Ring Terminal (#8 stud) | ||||||||||||||||||||||||||
Molex | 22 AWG | 17.5 AWG | 10 Stud | Poly-Vinyl Chloride (PVC) | Crimp | 0.866 " | 22 mm | Copper | 3.68 mm | 0.145 " | Red | Electro-Tin | 0.71 mm | 0.028 in | Insulated | Free Hanging (In-Line) | Circular | 8.18 mm | 0.322 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.20 | |
| 10 | $ 0.16 | |||
| 100 | $ 0.12 | |||
| 1000 | $ 0.09 | |||
Description
General part information
019070 Series
Ring Terminal Connector 6 Stud Circular 14-16 AWG Crimp
