0190700014-04-V9

Active

Molex

4" JUMPER 3075 VI001 VIOLET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0190700014-04-V9

Active

Molex

4" JUMPER 3075 VI001 VIOLET

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0190700014-04-V9

Color	Violet
Contact End	Ring Terminal (#8 stud) to Cable
Contact Finish	Tin
Length [x]	101.6 mm
Length [x]	4 "
Number of Conductors	1
Number of Rows	1
Wire Gauge	18 AWG

019070 Series

...

Part	Wire Gauge [Max]	Wire Gauge [Min]	Width - Outer Edges	Width - Outer Edges [x]	Stud/Tab Size	Material - Insulation	Termination	Length - Overall [x]	Length - Overall [x]	Contact Material	Insulation Diameter	Insulation Diameter [diameter]	Color	Contact Finish	Thickness	Thickness	Features	Insulation	Mounting Type	Terminal Type	Length [x]	Length [x]	Contact End	Wire Gauge	Number of Conductors	Number of Rows	Contact End [custom]	Contact End [custom]	Length	Length	Length - Overall [x]	Insulation Diameter [diameter]	Width - Outer Edges [y]	Width - Outer Edges [y]	Stud/Tab Size
Molex 0190700008	22 AWG	17.5 AWG	5.96 mm	0.235 in	4 Stud	Poly-Vinyl Chloride (PVC)	Crimp	0.709 "	18 mm	Copper	3.68 mm	0.145 "	Red	Electro-Tin	0.71 mm	0.028 in	Serrated Termination	Insulated	Free Hanging (In-Line)	Circular
Molex 0190700014-24-B9													Black	Tin							609.6 mm	24 in	Ring Terminal (#8 stud) to Cable	18 AWG	1	1
Molex 0190700014-06-N9-D													Brown	Tin										18 AWG	1	1	Ring Terminal (#8 stud)	Ring Terminal (#8 stud)	152.4 mm	6 in
Molex 0190700014-10-A9														Tin								10 in	Ring Terminal (#8 stud) to Cable	18 AWG	1	1			254 mm
Molex 0190700014-04-V9													Violet	Tin							101.6 mm	4 "	Ring Terminal (#8 stud) to Cable	18 AWG	1	1
Molex 0190700069					6 Stud	Poly-Vinyl Chloride (PVC)	Crimp		0.785 in	Copper		0.175 in	Blue	Tin			Serrated Termination	Insulated	Free Hanging (In-Line)	Circular											19.94 mm	4.45 mm	6.6 mm	0.26 in
Molex 0190700071						Poly-Vinyl Chloride (PVC)	Crimp		0.785 in	Copper		0.175 in	Blue	Electro-Tin	0.79 mm	0.031 in	Serrated Termination	Insulated	Free Hanging (In-Line)	Circular											19.94 mm	4.45 mm	6.6 mm	0.26 in	8 Stud
Molex 0190700014-12-R9													Red	Tin								12 in	Ring Terminal (#8 stud) to Cable	18 AWG	1	1			304.8 mm
Molex 0190700014-05-B9-D													Black	Tin							127 mm	5 in		18 AWG	1	1	Ring Terminal (#8 stud)	Ring Terminal (#8 stud)
Molex 0190700289	22 AWG	17.5 AWG			10 Stud	Poly-Vinyl Chloride (PVC)	Crimp	0.866 "	22 mm	Copper	3.68 mm	0.145 "	Red	Electro-Tin	0.71 mm	0.028 in		Insulated	Free Hanging (In-Line)	Circular													8.18 mm	0.322 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 1.24
		100	$ 1.02
		1000	$ 0.81
		2500	$ 0.75
		5000	$ 0.72

Description

General part information

019070 Series

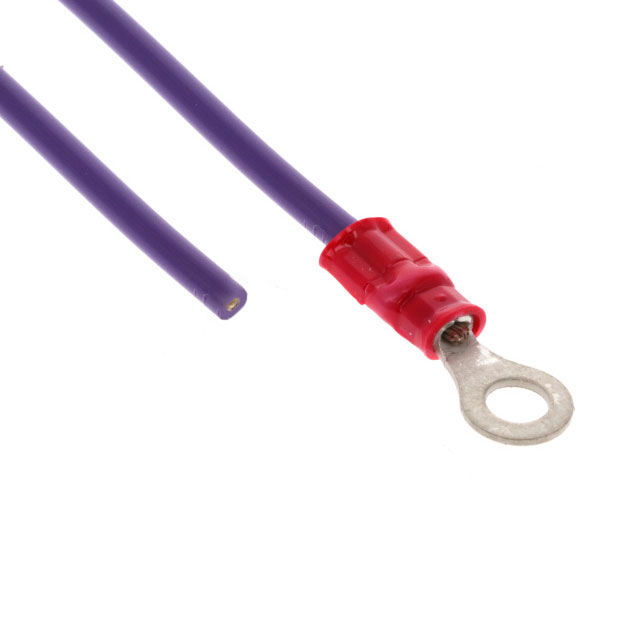

Violet 18 AWG Jumper Lead Ring Terminal (#8 stud) to Cable Tin 4.00" (101.60mm)
