TR1412PMS1NB - 192922-1270

TR1412PMS1NB

Active
ITT Cannon, LLC

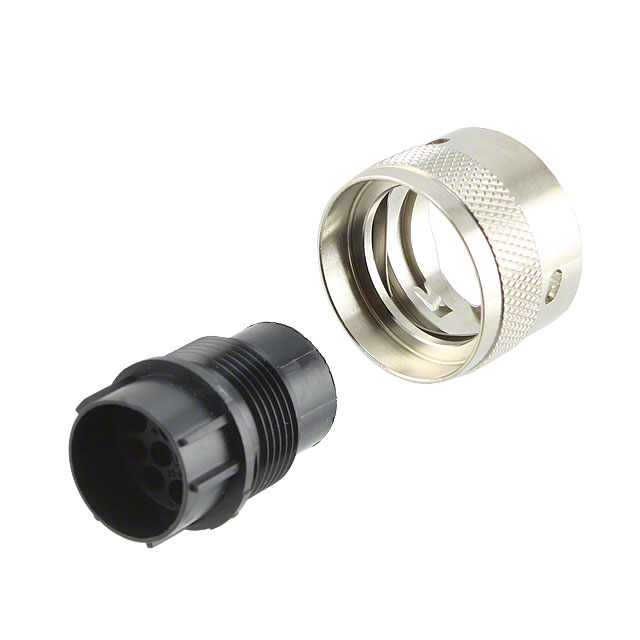

CIRCULAR CONNECTOR, TRIDENT RINGLOCK SERIES, CABLE MOUNT PLUG, 12 CONTACTS, NYLON (POLYAMIDE) BODY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetDrawing EN+2
TR1412PMS1NB - 192922-1270

TR1412PMS1NB

Active
ITT Cannon, LLC

CIRCULAR CONNECTOR, TRIDENT RINGLOCK SERIES, CABLE MOUNT PLUG, 12 CONTACTS, NYLON (POLYAMIDE) BODY

Deep-Dive with AI

DocumentsDatasheetDrawing EN+2

Technical Specifications

Parameters and characteristics for this part

SpecificationTR1412PMS1NB
Connector TypePlug Housing
Contact ShapeCircular
Contact TypeCrimp and Solder Cup
Fastening TypeDetent Lock
FeaturesCoupling Nut
Housing ColorBlack
Material Flammability RatingUL94 V-0
Mounting TypeFree Hanging (In-Line)
NoteContacts Not Included
Number of Positions12
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-55 °C
OrientationKeyed
Shell Size - Insert14-12
ShieldingUnshielded
TypeFor Male Pins

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 15.75
10$ 13.96
25$ 13.42
50$ 12.89
100$ 12.17
250$ 11.10
500$ 10.38
1000$ 9.52
NewarkEach 1$ 15.91
5$ 14.72
10$ 13.52
25$ 12.68
50$ 12.07
100$ 11.49
250$ 10.77

Description

General part information

TR141 Series
