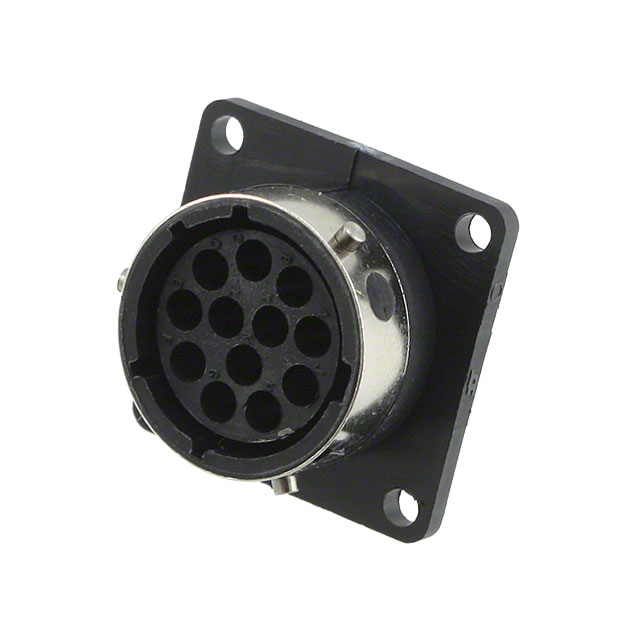

TR1412RFH1NB

Active

ITT Cannon, LLC

CIRCULAR CONNECTOR, TRIDENT RINGLOCK SERIES, RECEPTACLE, 12, SOCKET, PANEL MOUNT, 14-12 ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CIRCULAR CONNECTOR, TRIDENT RINGLOCK SERIES, RECEPTACLE, 12, SOCKET, PANEL MOUNT, 14-12 ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	TR1412RFH1NB

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Type	Solder Cup, Solder, Crimp
Fastening Type	Detent Lock
Housing Color	Black
Ingress Protection	IP65 - Dust Tight, Water Resistant
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	12
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Shell Size - Insert	14-12
Shielding	Unshielded
Type	For Female Sockets

Part	Mounting Type	Fastening Type	Contact Type	Note	Number of Positions	Contact Shape	Shell Size - Insert	Connector Type	Type	Shielding	Material Flammability Rating	Features	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Housing Color	Ingress Protection	Mounting Feature
ITT Cannon, LLC TR1412PFS1NB	Free Hanging (In-Line)	Detent Lock	Crimp and Solder Cup	Contacts Not Included	12	Circular	14-12	Plug Housing	For Female Sockets	Unshielded	UL94 V-0	Coupling Nut	105 ░C	-55 °C	Keyed	Black
ITT Cannon, LLC TR1412RFH1NB		Detent Lock	Crimp Solder Solder Cup	Contacts Not Included	12	Circular	14-12	Receptacle Housing	For Female Sockets	Unshielded	UL94 V-0		105 ░C	-55 °C	Keyed	Black	IP65 - Dust Tight Water Resistant	Flange
ITT Cannon, LLC TR1412PMS1NB	Free Hanging (In-Line)	Detent Lock	Crimp and Solder Cup	Contacts Not Included	12	Circular	14-12	Plug Housing	For Male Pins	Unshielded	UL94 V-0	Coupling Nut	105 ░C	-55 °C	Keyed	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Position Circular Connector Receptacle Housing Panel Mount
