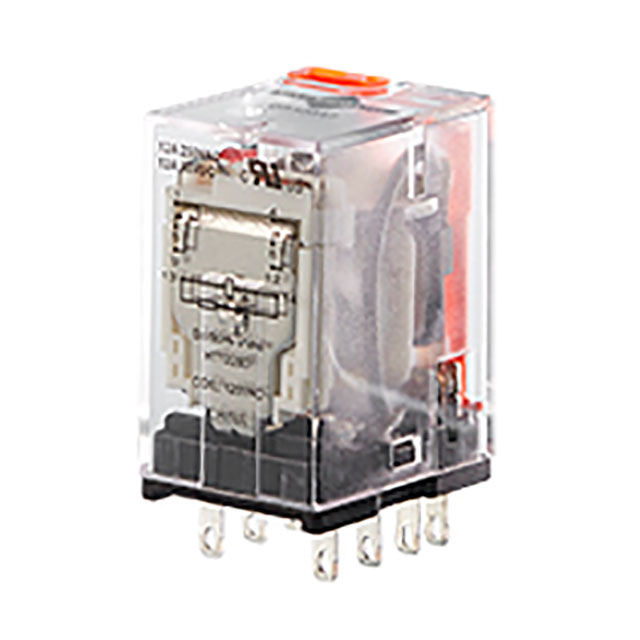

GB120A2

Active

Macromatic Industrial Controls

RELAY GEN PURPOSE DPDT 12A 120V

Search across all available documentation for this part.

Active

Macromatic Industrial Controls

RELAY GEN PURPOSE DPDT 12A 120V

Technical Specifications

Parameters and characteristics for this part

Specification	GB120A2

Coil Type	Non Latching
Coil Voltage	120 VAC
Contact Form	DPDT (2 Form C)
Contact Rating (Current)	12 A
Features	Test Button, Lighted Indicator
Mounting Type	Socketable
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Switching Voltage [Max]	30 VDC, 250 VAC
Termination Style	Plug In

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Rating (Current)	Mounting Type	Relay Type	Coil Voltage	Termination Style	Switching Voltage [Max]	Features	Contact Form	Coil Type
Macromatic Industrial Controls GB120A3	-40 °C	70 °C	10 A	Socketable	General Purpose	120 VAC	Plug In	30 VDC 250 VAC	Lighted Indicator Test Button	3PDT (3 Form C)	Non Latching
Macromatic Industrial Controls GB120A4	-40 °C	70 °C	6 A	Socketable	General Purpose	120 VAC	Plug In	30 VDC 250 VAC		4PDT (4 Form C)	Non Latching
Macromatic Industrial Controls GB120A2	-40 °C	70 °C	12 A	Socketable	General Purpose	120 VAC	Plug In	30 VDC 250 VAC	Lighted Indicator Test Button	DPDT (2 Form C)	Non Latching

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 11.74

General part information

General Purpose Relay DPDT (2 Form C) 120VAC Coil Socketable

Technical documentation and resources

No documents available
