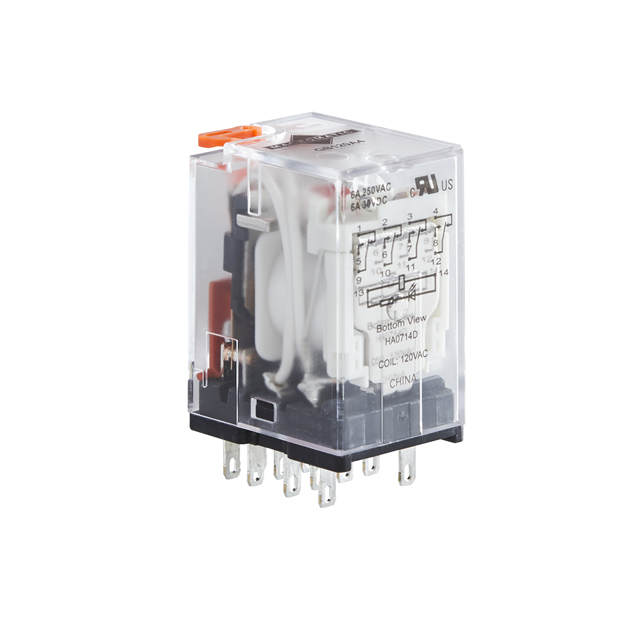

GB120A4

Active

Macromatic Industrial Controls

RELAY GEN PURPOSE 4PDT 6A 120V

Search across all available documentation for this part.

Active

Macromatic Industrial Controls

RELAY GEN PURPOSE 4PDT 6A 120V

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Rating (Current)	Mounting Type	Relay Type	Coil Voltage	Termination Style	Switching Voltage [Max]	Features	Contact Form	Coil Type
Macromatic Industrial Controls GB120A3	-40 °C	70 °C	10 A	Socketable	General Purpose	120 VAC	Plug In	30 VDC 250 VAC	Lighted Indicator Test Button	3PDT (3 Form C)	Non Latching
Macromatic Industrial Controls GB120A4	-40 °C	70 °C	6 A	Socketable	General Purpose	120 VAC	Plug In	30 VDC 250 VAC		4PDT (4 Form C)	Non Latching
Macromatic Industrial Controls GB120A2	-40 °C	70 °C	12 A	Socketable	General Purpose	120 VAC	Plug In	30 VDC 250 VAC	Lighted Indicator Test Button	DPDT (2 Form C)	Non Latching

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 13.10

General part information

General Purpose Relay 4PDT (4 Form C) 120VAC Coil Socketable
