LHD-09-TS

Active

Adam Tech

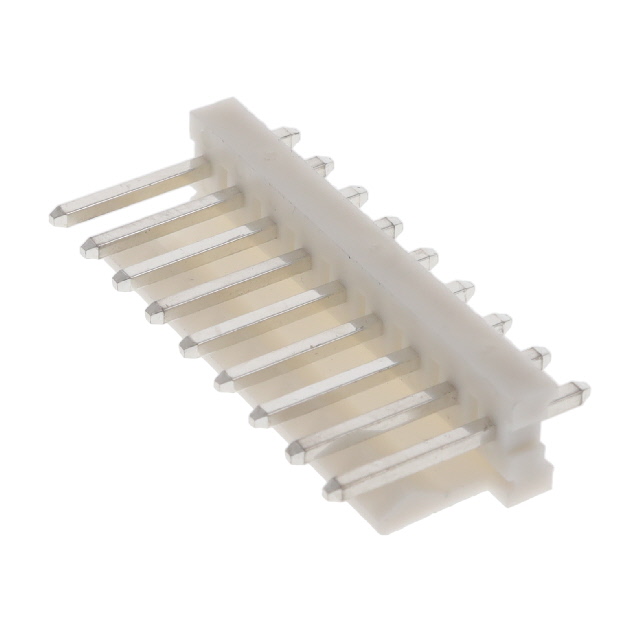

CONN HEADER VERT 9POS 3.96MM

Search across all available documentation for this part.

Active

Adam Tech

CONN HEADER VERT 9POS 3.96MM

Technical Specifications

Parameters and characteristics for this part

Specification	LHD-09-TS

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	0.448 in
Contact Length - Mating	11.38 mm
Contact Length - Post	3.6 mm
Contact Length - Post	0.142 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	7 A
Fastening Type	Friction Lock
Insulation Color	White
Insulation Height	0.425 in
Insulation Height	10.8 mm
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Through Hole
Number of Positions	9
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Overall Contact Length [x]	0.715 "
Overall Contact Length [x]	18.16 mm
Pitch - Mating	0.156 in
Pitch - Mating	3.96 mm
Shrouding	Shrouded - 1 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Current Rating (Amps)	Contact Length - Post	Contact Length - Post [x]	Material Flammability Rating	Connector Type	Number of Positions Loaded	Termination	Style	Insulation Material	Insulation Height [z]	Insulation Height [z]	Contact Material	Number of Positions	Contact Type	Number of Rows	Contact Length - Mating [custom]	Contact Length - Mating [custom]	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Color	Mounting Type	Pitch - Mating	Pitch - Mating	Shrouding	Contact Shape	Contact Finish - Post	Insulation Height	Insulation Height	Contact Length - Mating	Contact Length - Mating	Contact Length - Post	Overall Contact Length [x]	Overall Contact Length [x]
Adam Tech LHD-09-TRA	7 A	3.2 mm	0.126 in	UL94 V-2	Header	All	Solder	Board to Cable/Wire	Polyamide (PA66) Nylon 6/6 Glass Filled	0.3 in	7.62 mm	Brass	9	Male Pin	1	11.4 mm	0.449 in	Friction Lock	85 °C	-40 °C	White	Through Hole Right Angle	0.156 in	3.96 mm	Shrouded - 1 Wall	Square
Adam Tech LHD-09-TRB	7 A	3.2 mm	0.126 in	UL94 V-2	Header	All	Solder	Board to Cable/Wire	Polyamide (PA66) Nylon 6/6 Glass Filled	0.3 in	7.62 mm	Brass	9	Male Pin	1	11.4 mm	0.449 in	Friction Lock	85 °C	-40 °C	White	Through Hole Right Angle	0.156 in	3.96 mm	Shrouded - 1 Wall	Square	Tin
Adam Tech LHD-09-TS	7 A	3.6 mm		UL94 V-2	Header	All	Solder	Board to Cable/Wire	Polyamide (PA66) Nylon 6/6			Brass	9	Male Pin	1			Friction Lock	105 ░C	-40 °C	White	Through Hole	0.156 in	3.96 mm	Shrouded - 1 Wall	Square	Tin	0.425 in	10.8 mm	0.448 in	11.38 mm	0.142 in	0.715 "	18.16 mm
